Product Description

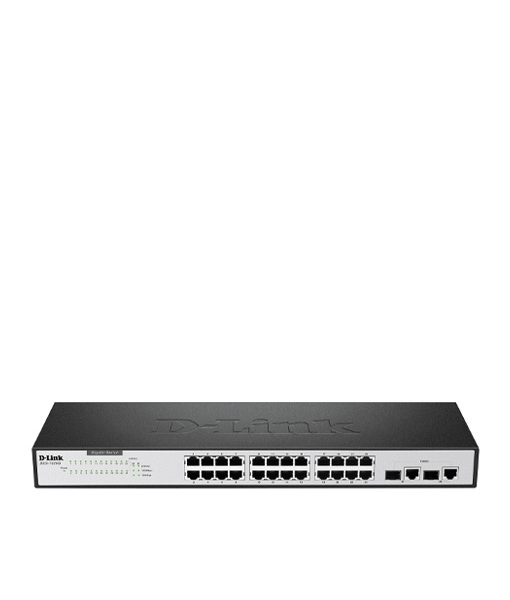

24-Port Fast Ethernet Switch with 2 Gigabit Uplink
The DES-1026G is an unmanaged 10/100 Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. It provides 24 10/100Mbps ports for workstation connection, plus 2 copper/SFP Gigabit combo ports for server and uplink deployment.
Product Description
The DES-1026G is an unmanaged 10/100 Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. It provides 24 10/100Mbps ports for workstation connection, plus 2 copper/SFP Gigabit combo ports for server and uplink deployment, allowing a workgroup to multiply bandwidth, boost response time, and satisfy heavy load demands.
Increased Productivity
The DES-1026G comes with 24 10/100 Mbps ports, allowing a small workgroup to flexibly integrate to Ethernet and Fast Ethernet. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full and half-duplex, letting you focus on work-day productivity rather than connectivity issues.
Instantly Upgrade to Gigabit Speeds
Two Copper/SFP Gigabit combo ports support auto-sensing and full/half-duplex auto-negotiation, keeping you up to date with the latest technologies in switch connectivity. Additionally, all ports support flow control, which minimizes dropped packets by sending out collision signals when the port’s receiving buffer is full, ensuring reliable connectivity.
Plug and Play
All ports support auto-negotiation of MDI/MDIX cross over, which eliminates the need for cross over cables or uplink ports. Any port can simply plug to a workstation, a server, a hub or a switch using the usual straight-through twisted-pair cable, saving you time and money. With 26 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment. The ports can be connected to workstations and servers in full-duplex, or hubs in half-duplex.
Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DES-1026G unmanaged switch to further its commitment to product quality and long-term customer confidence.
Returns and Exchanges
There are a few important things to keep in mind when returning a product you purchased.You can return unwanted items by post within 7 working days of receipt of your goods.
- You have 14 calendar days to return an item from the date you received it.
- Only items that have been purchased directly from Us.
- Please ensure that the item you are returning is repackaged with all elements.
Ship your item back to Us
Firstly Print and return this Returns Form to:
30 South Park Avenue, San Francisco, CA 94108, USA
Please remember to ensure that the item you are returning is repackaged with all elements.
For more information, view our full Returns and Exchanges information.
Related Products
- High-Speed internet
Latest ADSL2/2+ standards provide Internet transmission of up to 24 Mbps downstream,
1 Mbps upstream
- High performance wireless
High-speed 802.11n wireless gives you superior speed and range while remaining
compatible with 802.11g/b devices
- Total security & QoS
Firewall protection, user access control, WPA/WPA2 wireless security,
and priority queues
-Blazing Fast
-Plug and Play
-Compact Design
-High-speed Wired Connection
-Plug and Play
-Compact Design
- Connect up to sixteen devices with Fast Ethernet connectivity
- Compact design for placement virtually anywhere
- Plug and play technology for simple setup
- Fanless design provides silent operation
Eco-friendly and Economical
-
Low-cost, innovative design runs reliably and quietly, saving energy and cutting costs without sacrificing connectivity
High-speed Networking
-
Fast Ethernet ports allow you to expand your newtrok and connect all your devices for quick file transfers and smooth media streaming
Saves Energy
-
Environmental features reduce energy consumption, cutting costs, while compliance certifications give you piece of mind
- Connect up to 24 devices with Fast Ethernet connectivity
- Compact design for placement virtually anywhere
- Plug and play technology for simple setup
- Fanless design provides silent operation
The DES-1024D is a 24-Port 10/100 Unmanaged Desktop/Rackmount Switch that combines ease of use with unsurpassed performance, resulting in an exceptional value for any network administrator who wants the best possible solution at the best price. The DES-1024D is a true Plug-and-Play device, featuring Auto Speed Sensing, Auto-negotiation, and Auto MDI/MDI-X Crossover.
The DGS-1008A 8-Port Gigabit Switch is part of D-Link’s new series of SOHO devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. An energy-efficient power adapter (Energy Star Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.
-HIGH-SPEED NETWORKING -PLUG AND PLAY -WIRED PoE ACCESS
-AUTO MDI/MDIX CROSSOVER
-POWER OVER ETHERNET (PoE)
- High-Speed Networking
- Intelligent Data Streaming
- Eco-Friendly and Economical
Gigabit on Every Port
Innovative Design
Conserves Energy
Gigabit Ethernet Speed
Revolutionary Design
Eco-Friendly
-Gigabit ports allow you to connect up to five or eight devices for fast file transfers and smooth media streaming
-QoS support enables uninterrupted VoIP calls, smooth online gaming, and quick downloads over the network connection
-D-Link Green Technology saves energy while using an economical yet innovative design that runs cool and quiet
-High-Speed Wireless Networking
-Three antennas provide better coverage
-Remote management WIth a personal cloud
-Easy to install and use
Enjoy combined wireless speeds of up to 1750 Mbps and increased range thanks to the latest 802.11ac wireless technology
Access your network via two concurrent wireless bands for seamless performance no matter what you are doing
Set up the DIR-859 in no time with the web-based setup wizard, and create a secure wireless connection easily using Wi-Fi Protected Setup (WPS)

Create a blazing fast home network that connects all of your computers and mobile devices to your broadband Internet connection. The newly introduced SmartConnect1 technology ensures that older wireless devices do not degrade the overall performance of the DIR-885L and allows wireless AC devices to have a total throughput of 3150 Mbps. The Advanced AC SmartBeam technology that is also in the DIR-885L brings you the future of high-bandwidth wireless connectivity, vastly increasing the speed and coverage of your network.
The AC3150 Ultra Wifi Router is mydlink Cloud enabled, so you can effortlessly access and view your network no matter where you are. See who is connected to your router, change settings, or block someone from using your network connection, all from an Internet connected PC, tablet, or smartphone. Parents can monitor what sites their children are visiting, to stay informed and in control on the go.
The mydlink SharePort app allows you to connect a USB storage device to the DIR-885L and instantly share documents, movies, pictures, and music with mobile devices. Put your music library on a USB drive and share it with everyone else in your home, or show photos on the living room TV while a family member watches a movie on their mobile device.
- Four 10/100/1000 Gigabit Ethernet LAN ports give you high-speed wired connectivity Flexible Bandwidth
- Concurrent dual-band wireless for connections up to 1200 Mbps
- QoS engine to prioritize important traffic and deliver uninterrupted bandwidth Setup and Management
- Web browser-based setup and configuration
- Setup wizard to guide you through the configuration process
- Firewall and access control options to prevent attacks and restrict access to your network
-
Gigabit Ethernet Speed - High-speed ports provide the latest Ethernet technology while remaining backward compatible for connections to older computers and equipment
-
Revolutionary Design - Compact metal case for high-port count Gigabit switches, plus a fanless design that provides noise-free operation at all times
-
Green Solution - Range of D-Link Green Technology features help save energy usage automatically and reduce costs, without sacrificing performance
Blazing Fast Wireless Speeds - High-speed Wireless N technology allows you to wirelessly stream HD movies, play lag-free online games, and make clear Internet phone calls
Total Security - Complete set of security features including an SPI firewall and Wi-Fi Protected Access to shield your network from intruders
Total Compatibility - Works with any Wi-Fi certified device, so your older wireless devices will connect without hassle, giving you peace of mind and performance
-Enjoy very fast data transmission at rates of up to 2 Gbps
-Consume less energy as adapter automatically lowers power consumption when traffic is low
-You can boot up the PC from another location on the network
Capable of running at full-duplex Gigabit speed, this card gives your PC 2000Mbps data transmission on your existing Cat. 5 twisted-pair network cable
The card provides on-board screening of VLANs Tagged Ethernet frames, allowing your PC to be configured with a VLAN-supported switch.
Using a single chip solution, this card is very small in size and consumes very little power of your computer system.
The card's single RJ-45 connector connects to either 10BASE-T Ethernet or 100BASE-TX Fast Ethernet.
In the fast 200Mbps full-duplex mode, the card's embedded flow control provides a means to protect your data against possible loss during transmission on the network.
Bus Master transfers data directly between the card and the PC host, bypassing your computer host CPU to alleviate its workload.
Stream HD multimedia across your home without interruption using the fastest wired and wireless connectivity options available today
Create a personal cloud to effortlessly PC or mobile device
The QRS (Quick Router Setup) Mobile app for your iOS or Android device allows you to set up your network without touching a computer

Uses 802.11n technology, allowing for faster browsing and smooth streaming, while still compatible with 802.11g devices
Rotatable high-gain antenna enhances reception,covering a wider distance and eliminating dead spots in hard to reach areas
Intuitive Setup Wizard for easy setup, enabling robust security simply by pushing a button
-Eco-Friendly
-Silent Operation
-Intelligent Data Streaming
-
Gigabit Ethernet Speed - High-speed ports provide the latest Ethernet technology while remaining backward compatible for connections to older computers and equipment
-
Revolutionary Design - Compact metal case for high-port count Gigabit switches, plus a fanless design that provides noise-free operation at all times
-
Green Solution - Range of D-Link Green Technology features help save energy usage automatically and reduce costs, without sacrificing performance
Complete Internet Solution
High-Speed Connectivity
Robust Security Features
No Cabling to Install, No Complicated Setup
Just Plug & Play
Advanced Multimedia Streaming
Gigabit High-Speed Networking
Intelligent Data Streaming
Energy Efficient
Gigabit High-Speed Networking
Intelligent Data Streaming
Energy Efficient
-Gigabit High-Speed Networking
-Intelligent Data Streaming
-Energy Efficient
-Gigabit High-Speed Networking
-Intelligent Data Streaming
-Energy Efficient
-Compact Design
-Auto MDI/MDI-X Crossover
-Flow Control for Secure Transmission
-High-Speed Networking
-Energy Efficient
-Compact Design
-High-Speed Networking
-Energy Efficient
-Compact Design
-Great Connection Reliability
-High Performance
-Easy Configuration
-Super-Fast Wireless AC
-Simple Setup
-Highly Portable
-Connect More Usb 2.0 Devices
-Fast-Charge Mode for Ipads
-High Speeds, Compact size
-Connect More Usb 2.0 Devices
-Fast-Charge Mode For Ipads
-High Speeds,Compact Size
24-Port Fast Ethernet Switch with 2 Gigabit Uplink
24-Port Fast Ethernet Switch with 2 Gigabit Uplink
The DES-1026G is an unmanaged 10/100 Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. It provides 24 10/100Mbps ports for workstation connection, plus 2 copper/SFP Gigabit combo ports for server and uplink deployment.
The DES-1026G is an unmanaged 10/100 Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. It provides 24 10/100Mbps ports for workstation connection, plus 2 copper/SFP Gigabit combo ports for server and uplink deployment, allowing a workgroup to multiply bandwidth, boost response time, and satisfy heavy load demands.
Increased Productivity
The DES-1026G comes with 24 10/100 Mbps ports, allowing a small workgroup to flexibly integrate to Ethernet and Fast Ethernet. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full and half-duplex, letting you focus on work-day productivity rather than connectivity issues.
Instantly Upgrade to Gigabit Speeds
Two Copper/SFP Gigabit combo ports support auto-sensing and full/half-duplex auto-negotiation, keeping you up to date with the latest technologies in switch connectivity. Additionally, all ports support flow control, which minimizes dropped packets by sending out collision signals when the port’s receiving buffer is full, ensuring reliable connectivity.
Plug and Play
All ports support auto-negotiation of MDI/MDIX cross over, which eliminates the need for cross over cables or uplink ports. Any port can simply plug to a workstation, a server, a hub or a switch using the usual straight-through twisted-pair cable, saving you time and money. With 26 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment. The ports can be connected to workstations and servers in full-duplex, or hubs in half-duplex.
Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DES-1026G unmanaged switch to further its commitment to product quality and long-term customer confidence.
Specifications
Standards | IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x Flow Control |
|
Protocol | CSMA/CD | |
Data Transfer Rates | Ethernet 10Mbps (half-duplex) 20Mbps (full-duplex) Fast Ethernet: 100Mbps (half-duplex) 200Mbps (full-duplex) Gigabit Ethernet: 2000Mbps (full duplex) |
|
Topology | Star | |
Network Cables | 10BASE-T: UTP Cat. 3, 4, 5 (100 m max.) EIA/TIA-586 100-ohm STP (100 m max.) 100BASE-TX, 1000BASE-T: UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.) |
|
Number of Ports | 10/100Mbps port x 24 10/100/1000Mbps port x 2 |
|
Media Interface Exchange | Auto MDI/MDI-X for each port | |
Twisted-pair Rx Reverse Polarity | Auto-correction for each port | |
Status/Diagnostic LEDs | Per device: Power Per port: Link/Activity 100Mbps speed (10/100Mbps ports) 100Mbps, 1000Mbps speeds (10/100/1000Mbps ports) |
|
Transmission Method | Store-and-forward | |
Switch Fabric | Non-blocking 8.8Gbps |
|
Filtering Address Table | 8K entries per device | |
MAC Address Learning | Automatic update | |
Packet Filtering 1 Forwarding Rates | 10BASE-T: 14,880 pps per port (half-duplex) 100BASE-TX: 148,810 pps per port (half-duplex) Gigabit Ethernet: 1,488,100 pps per port |
|
RAM Buffer | 320KBytes per device | |
Power Supply | 100 - 240 VAC Internal universal power supply |
|
Power Consumption | 9.8 watts | |
MTBF | 409,781 hours | |
Ventilation | No fan | |
Operating Temperature | -40 C (32 -104 F) | |
Storage Temperature | -10 -70 C (12 -158 F) | |
Humidity | 5% - 95% RH non-condensing | |
Dimensions | 440 (W) x 140 (D) x 44 (H) mm (17.32 x 5.51 x 1.73 inches) 19-inch rack-mount width, 1 U height | |
Weight | 2.8 kg (6.17 lb.) | |
Emission (EMI) | FCC Class A CE Class A VCCI Class A C-Tick |
|
Safety | cUL |
