• Enhanced Small Form-Pluggable (SFP+) form factor • Hot pluggable • Support 10G Ethernet • Feature Digital Diagnostics Monitoring (DDM) • RoHS Compliant • Compliant with MSA (Multiple Source Agreement) • Compliant with IEEE802.3ae and 802.3aq standards
Better 10G Ethernet Connectivity for Enterprise Deployments

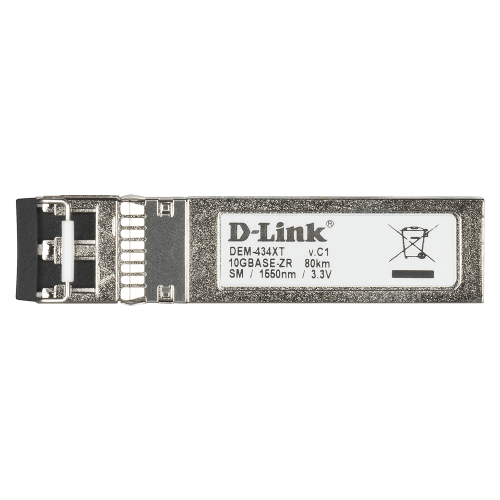

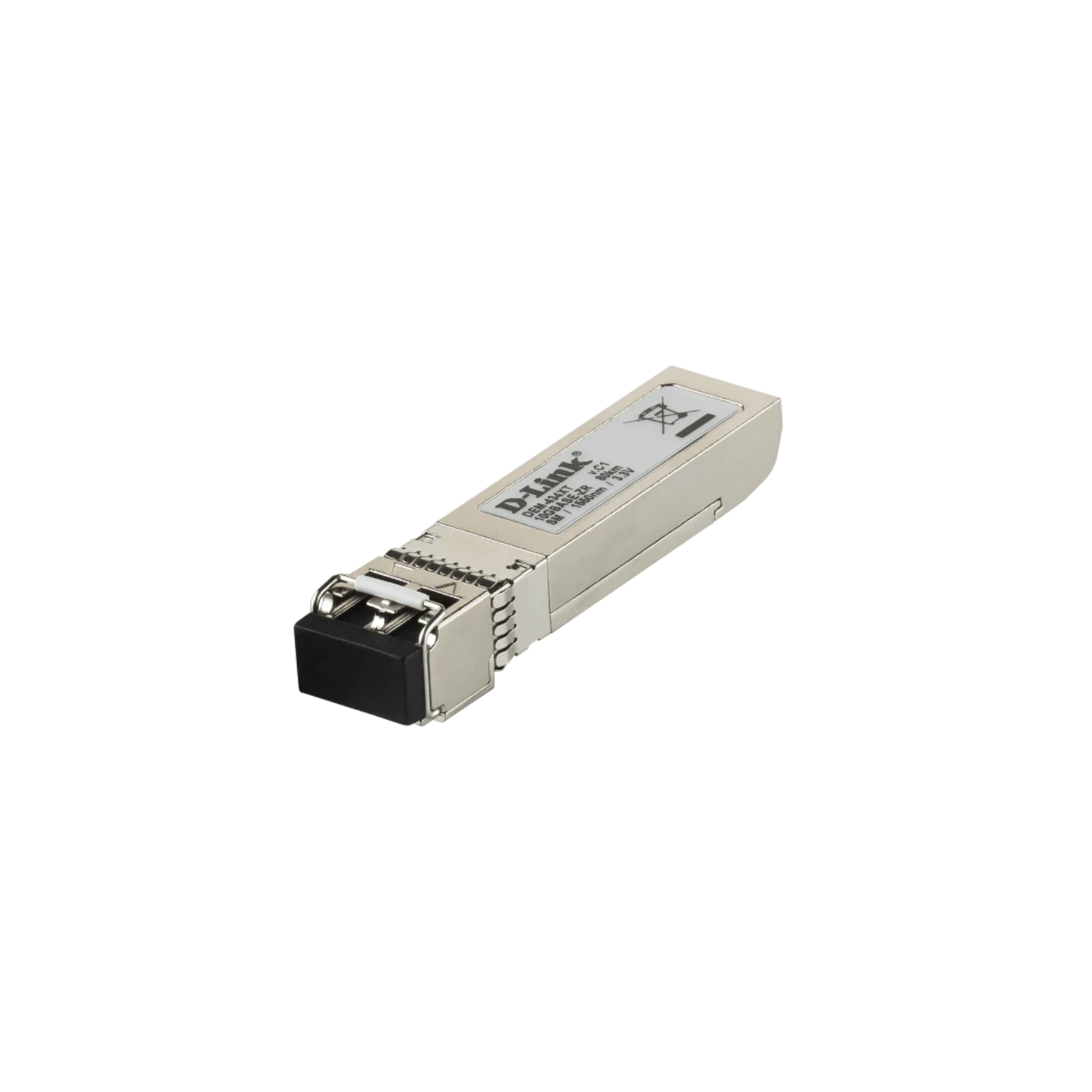

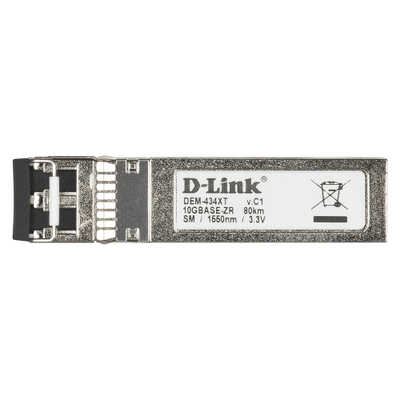

D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
*Actual product appearance may differ from the image displayed on this page
10G Ethernet speeds
The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Enhanced Small Form-factor Pluggable Format
The transceivers use the Enhanced Small Form-factor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.
Hot-Pluggable
All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This allows modules to be added or removed without interrupting the network.
Need help?
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
D-Link provides 24x7 LiveChat/Hotline Tech Support
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Tech Specifications
Hardware
Cable Type
single-mode 9/125um fiber
Power
3.3V
Max Input Current
450mA
Power Budget (MIN Power Budget)
24dB
MAX Power Budget
28dB
Heat Generated
5.35KJ/H
MTBF (hours)
1584786
Hardware version
A1
Wireless
Wavelength
1550nm
Output Optical Power (TX Optical Power)
MAX.: 4 dBm
Interface
MIN.: -24 dBm
Input Optical Power (RX Optical Power)
MAX.: -7 dBm
Sensitivity
-24 dBm
General
Hot Pluggable
Yes
MSA Compliant
Yes
RoHS Compliant
Yes
Compliant Standard
IEEE-802.3ae 10GBASE-ZR
Transceiver Type
SFP+
Fiber Channel FC-PI standard
1200-SM-LL-L 10G Fiber channel
Fiber Media support
Single-Mode
Distance
80km
Speed
10Gbps
connector
Duplex LC Connector
single/bi Direction
single-direction
EMI:
CE, FCC, VCCI
Safety:
UL, TUV
Physical
Operation Temperature
0°～70°C
Storage Temperature
-40°～85°C
Humidity (Operating)
5% ~ 85%
Humidity (Storage)
5% ~ 85%
Dimension ( W x D x H )
Comply with SFF8432 14.3 x 56.5 x 11.85 mm
Weight
20g
