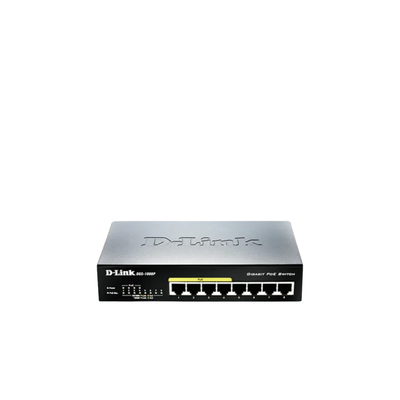

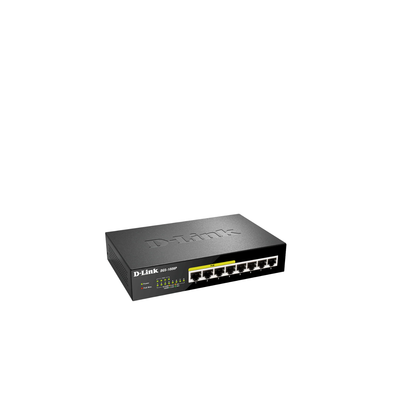

8-Port Desktop Switch with 4 PoE Ports
8-Port Desktop Switch with 4 PoE Ports
8-Port Desktop Switch with 4 PoE Ports
SKU

8-Port Desktop Switch with 4 PoE Ports

  • Supports both IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) standards
  • A large 68 W PoE power budget and up to 30 W of power per port

Pairs well with

* Warranty Details
Downloads Datasheets

Tech Specifications

Hardware

Interface

• 8 x 10/100/1000BASE-T ports

Jumbo Frame Size

• 9,720 bytes

Flash Memory Size

• 512 Kb

PoE-capable Ports

• Ports 1 to 4

Power / PoE Max (per unit)

•✓

Power / Status (per port)

•✓

Activity / Link and Speed (per port)

•✓

Wireless
Wireless

Standards

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control

PoE Standards

• IEEE 802.3af • IEEE 802.3at

General

Media Interface Exchange

• Auto-MDI/MDI-X adjustment on all ports

Switching Fabric

• 16 Gbps

Transmission Method

• Store-and-forward

Data Transfer Rates

• Gigabit Ethernet
• 2000 Mbps (full-duplex)
• Fast Ethernet
• 100 Mbps (half-duplex)
• 200 Mbps (full-duplex)
• Ethernet
• 10 Mbps (half-duplex)
• 20 Mbps (full-duplex)

Packet Filtering / Forwarding Rates

• 11.90 Mpps

MAC Address Table

•4K entries per device

Power Budget

• 68 W (30 W max. per PoE port)

DC Input

• External 54 V / 1.67 A power adapter

Temperature

• Operating: 0 to 50 ˚C (32 to 122 ˚F)

• Storage: -40 to 70 ˚C (-40 to 158 ˚F)

Humidity

• Operating: 0% to 95% RH non-condensing

MTBF

• 631,894 hours

Safety

• cUL
• BSMI
• LVD

EMI/EMC

• CE Class B
• BSMI
• FCC Class B
• VCCI Class B
• RCM
• KCC

Physical

Size

• Desktop

Weight

• 0.59 kg (1.30 lbs)

Dimensions

• 190 x 120 x 38 mm (5.5 x 3.0 x 1.06 in)

Power Consumption

• 74.2 W maximum (PoE on)

• 2.3 W maximum (PoE off)
