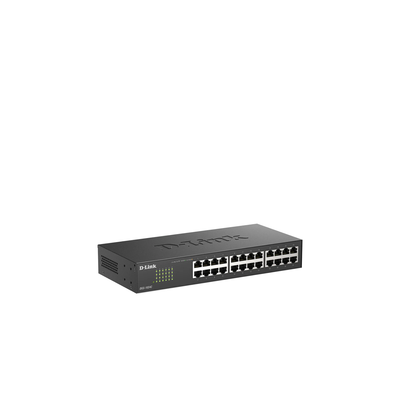

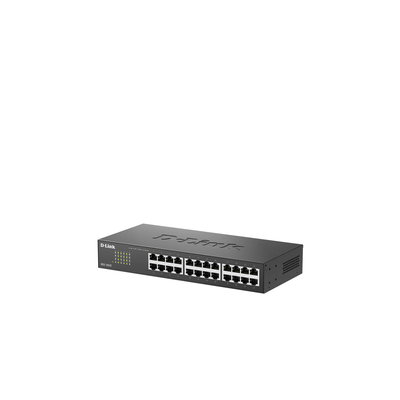

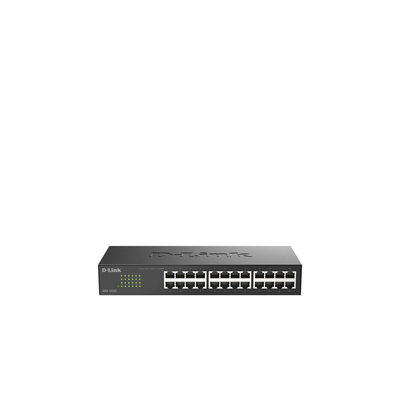

DGS-1024C

24-Port Gigabit Unmanaged Switch

  • 24 Gigabit LAN ports for high-speed wired connections
  • Plug-and-play installation for convenience
  • Auto-negotation on all ports
  • Half/full-duplex, auto MDI/MDIX, and store-and-forward switching
  • Full wire-speed data transmission
  • Energy-efficient design

Pairs well with

* Warranty Details
Downloads Datasheets

Tech Specifications

Hardware

Device Interfaces

•24 10/100/1000 Mbps LAN ports

Standards

•IEEE 802.3 10BASE-T
•IEEE 802.3u 100BASE-TX
•IEEE 802.3ab 1000BASE-T
•IEEE 802.3x Flow Control
•IEEE 802.1p QoS
•IEEE 802.3az Energy-Efficient Ethernet (EEE)

Switching Capacity

•48 Gbps switching fabric

MAC Address Table Size

•16,000

Packet Filtering/Forwarding Rates

•Ethernet: 14,880 pps per port
•Fast Ethernet: 148,800 pps per port
•Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

•512 KB per device

General

Advanced Features

•Auto MDI/MDIX crossover for all ports
•Secure store-and-forward switching scheme
•Full/half-duplex for Ethernet/Fast Ethernet speeds
•Supports 9,216 byte jumbo frames
•Back pressure at half-duplex operation
•Wire-speed reception and transmission
•Store and-Forward switching method
•Auto-negotiation for each port
•QoS (8 queues, strict mode)

Certifications

•CE Class B
•CE (LVD 2006/95/EC)

Physical

Data Transfer Rates

•Ethernet:
•10 Mbps (half duplex)
•20 Mbps (full duplex)
•Fast Ethernet:
•100 Mbps (half duplex)
•200 Mbps (full duplex)
•Gigabit Ethernet
•2000 Mbps (full duplex)

Transmission Method

•Store-and-forward

LED Indicators

•Per port: Link/Activity/Speed
•Per device: Power

Media Interface Exchange

•Auto MDI/MDIX adjustment for all ports

Dimensions

•282.2 x 178.0 x 44.5 mm (11.11 x 7.01 x 1.75 inches)

Weight

•1.14 kg (2.51 lbs)

Power

•100 to 240 V AC

Power Consumption

•Power On (Standby): 6.5 watts
•Maximum: 13.5 watts

Temperature

•Operating: 0 to 40 °C (32 to 104 °F)
•Storage: -40 to 70 °C (-40 to 158 °F)

Humidity

•Operating: 10% to 90% non-condensing
•Storage: 5% to 95% non-condensing
