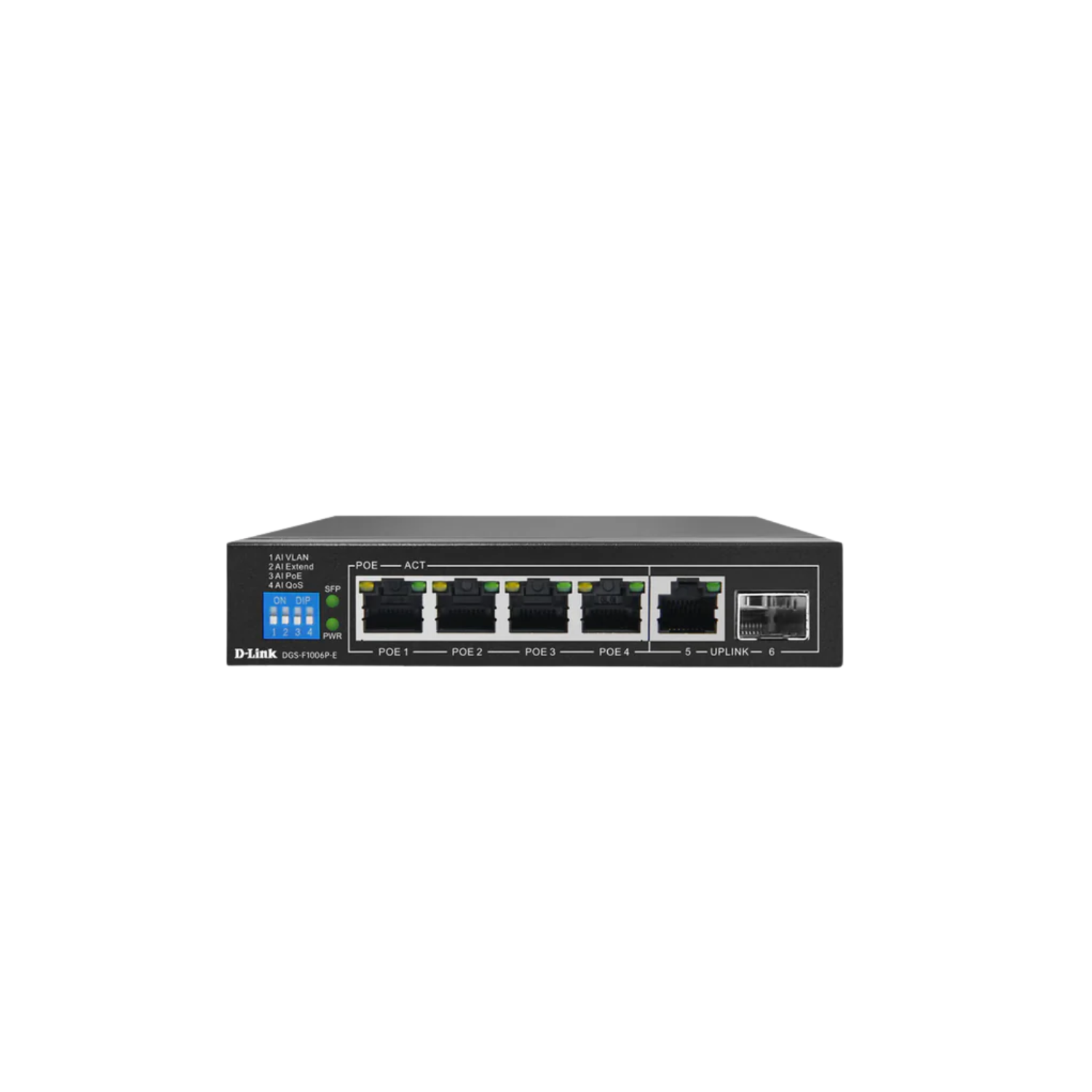

4GE PoE+ 1GE & 1 SFP Uplink 250m PoE Switch
SKU

4GE PoE+ 1GE & 1 SFP Uplink 250m PoE Switch

  • 4 10/100/1000 Mbps gigabit ethernet ports
  • 1 10/100/1000 Mbps & 1 SFP uplink port
  • 60watts available PoE
  • Flow control for protection against data loss
  • Maximum distance of 250m
  • Light protection 6KV
  • Operating Temperature: 0 to 40 deg C (32 to 104 deg F)

Pairs well with

* Warranty Details
Downloads Datasheets

Tech Specifications

Hardware

Interfaces

•4 10/100/1000 BASE-T ports

•2 10/100/1000 BASE-T Uplink ports

Power

•✓

• External power adapter: 60W

Link/Activity

•✓

Wireless
Wireless

Standards

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x ow control

Data Transfer Rates

• Fast Ethernet
• 100 Mbps
• Gigabit Ethernet
• 1000 Mbps

PoE Standards

•IEEE 802.3af

•IEEE 802.3at

PoE-Capable Ports

•Ports 1 to 4

General

Media Interface Exchange

•Auto MDI/MDI-X adjustment on all ports

Lighting Protection

•6KV

Switching Fabric

•12 Gbps

Transmission Method

•Adopt Store-and-forward

Packet Filtering / Forwarding Rates

•10M port maximum 14800pps
• 100M port maximum 148800pps
• 1000M port maximum 1488000pp

Power Budget

•60 W (30 W max. per PoE port)

Temperature

•Operating: 0 to 40 ˚C (32 to 104 ˚F)

Humidity

•Operating: 0% to 95% RH non-condensing

•Storage: 0% to 95% RH non-condensing

Safety

•LVD

EMI/EMC

•CE
•FCC

Physical

Size

•Desktop

Weight

•0.75kg

Dimensions

•125 x 75 x 27 mm
