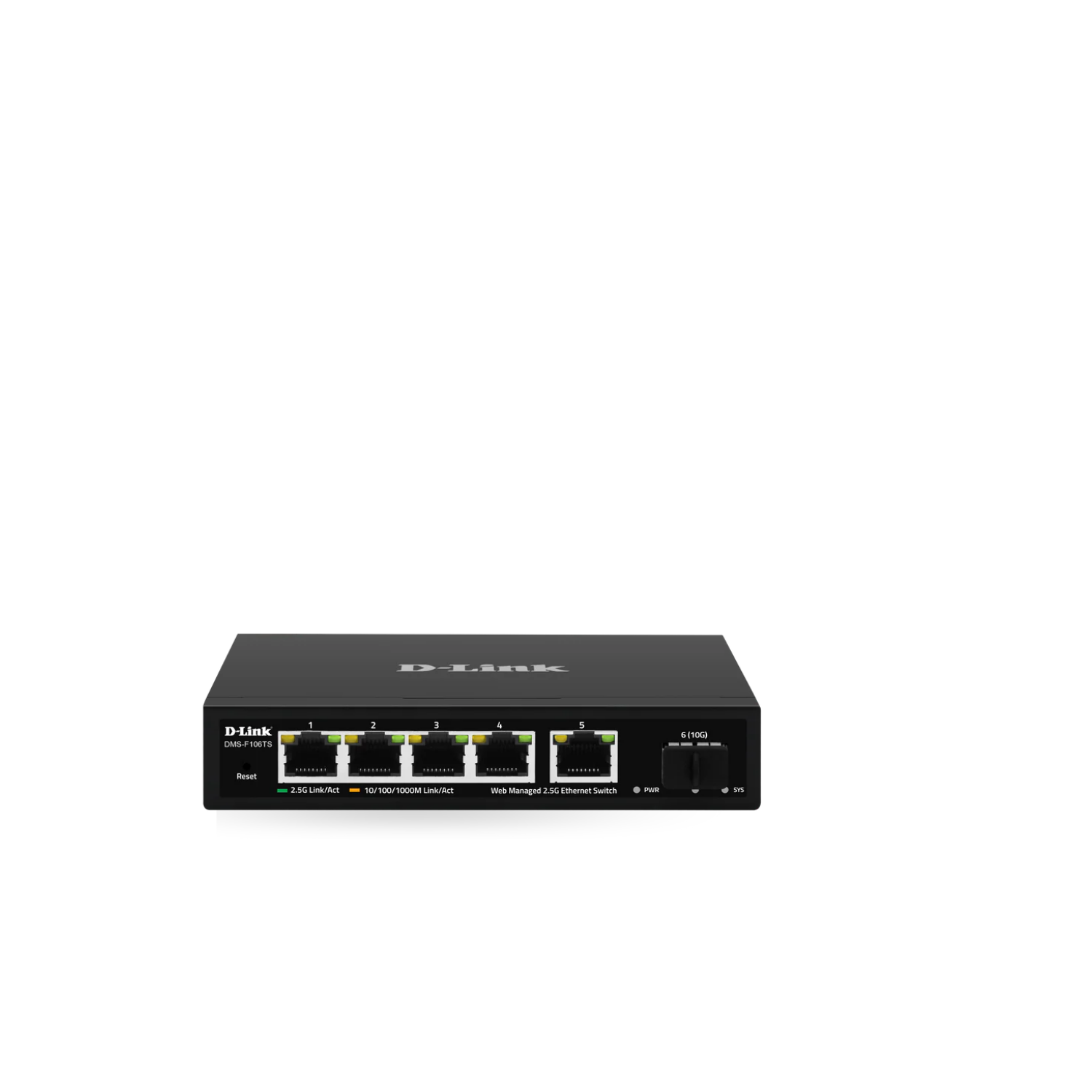

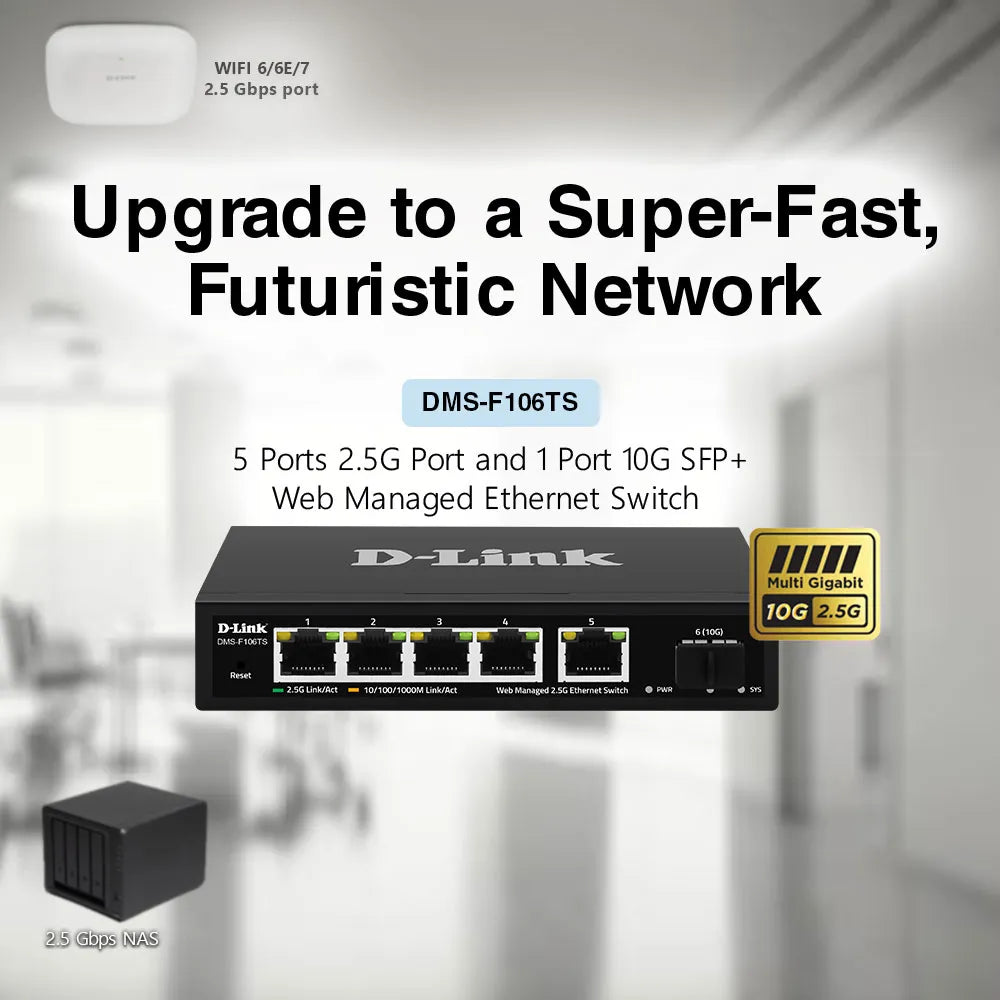

5-port 2.5G with 1-Port SFP+ Web Management Desktop Switch

DMS-F106TS

Product variants

• 5 x 100/1000/2500Mbps RJ45 + 1 x 10G SFP+ Port: High-speed connectivity with flexible options.
• IEEE 802.3 Compliance: Meets multiple standards including 802.3bz and 802.3ae.
• Adaptive RJ45 Ports: Auto-adjusts between 100/1000/2500Mbps.
• Auto MDI/MDIX: Eliminates the need for crossover cables.
• Status LEDs: For real-time monitoring and fault diagnosis.
• Flow Control: IEEE 802.3x for full-duplex, Back pressure for half-duplex.
• QoS Support: Prioritizes critical data traffic.

Share:

Share

Pairs well with

* Warranty Details

5-port 2.5G with 1-Port SFP+ Web Management Desktop Switch

DMS-F106TS

79₫ 129₫

Downloads Datasheet

Key Features and Benefits

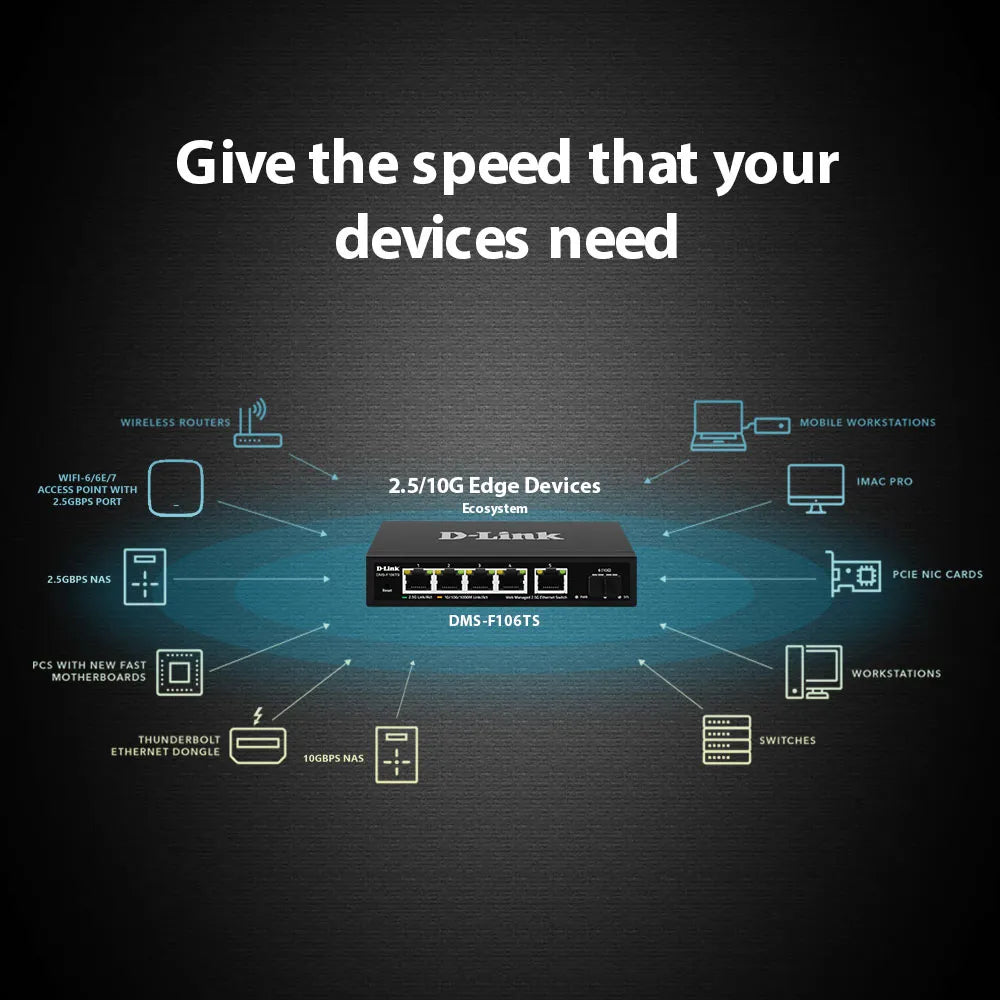

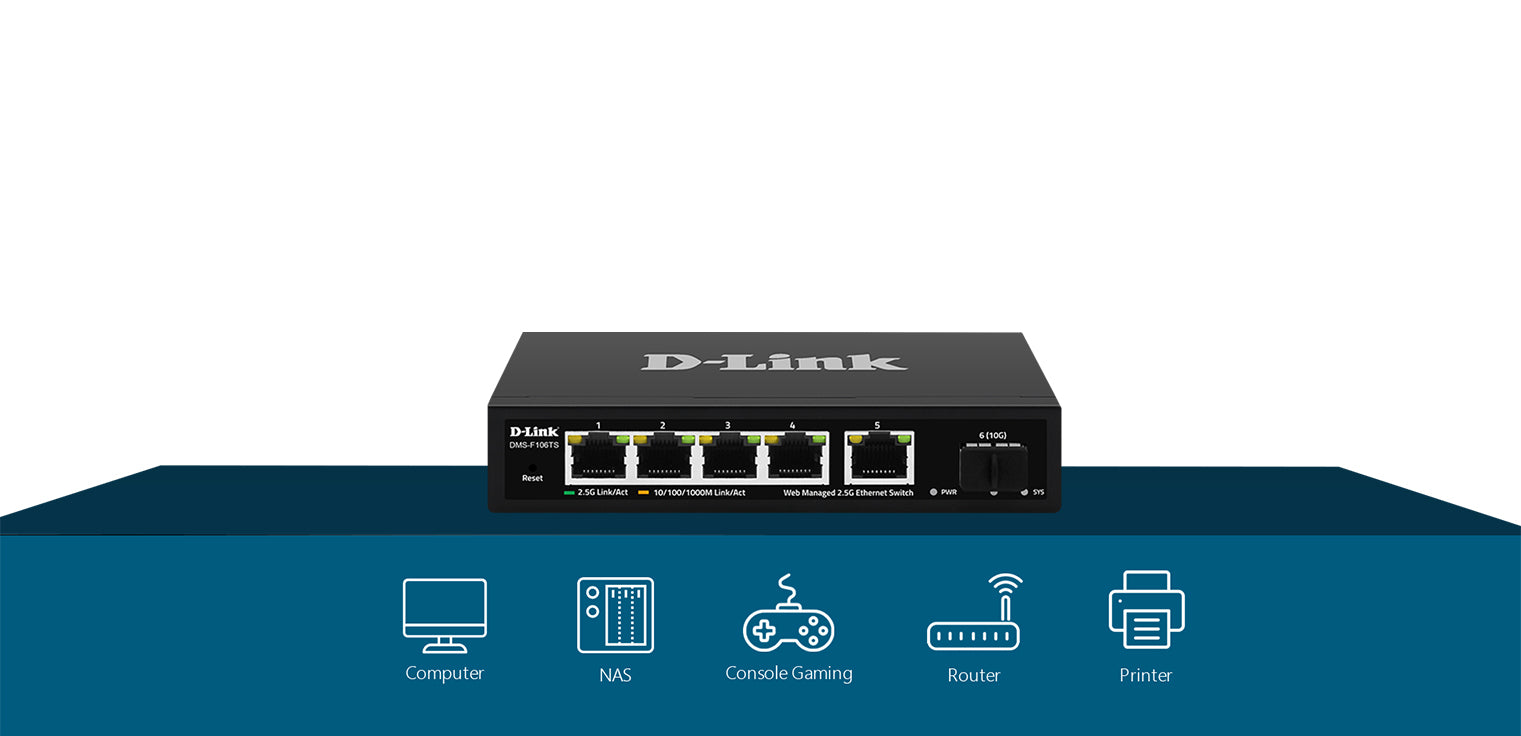

Give the speed that your devices need

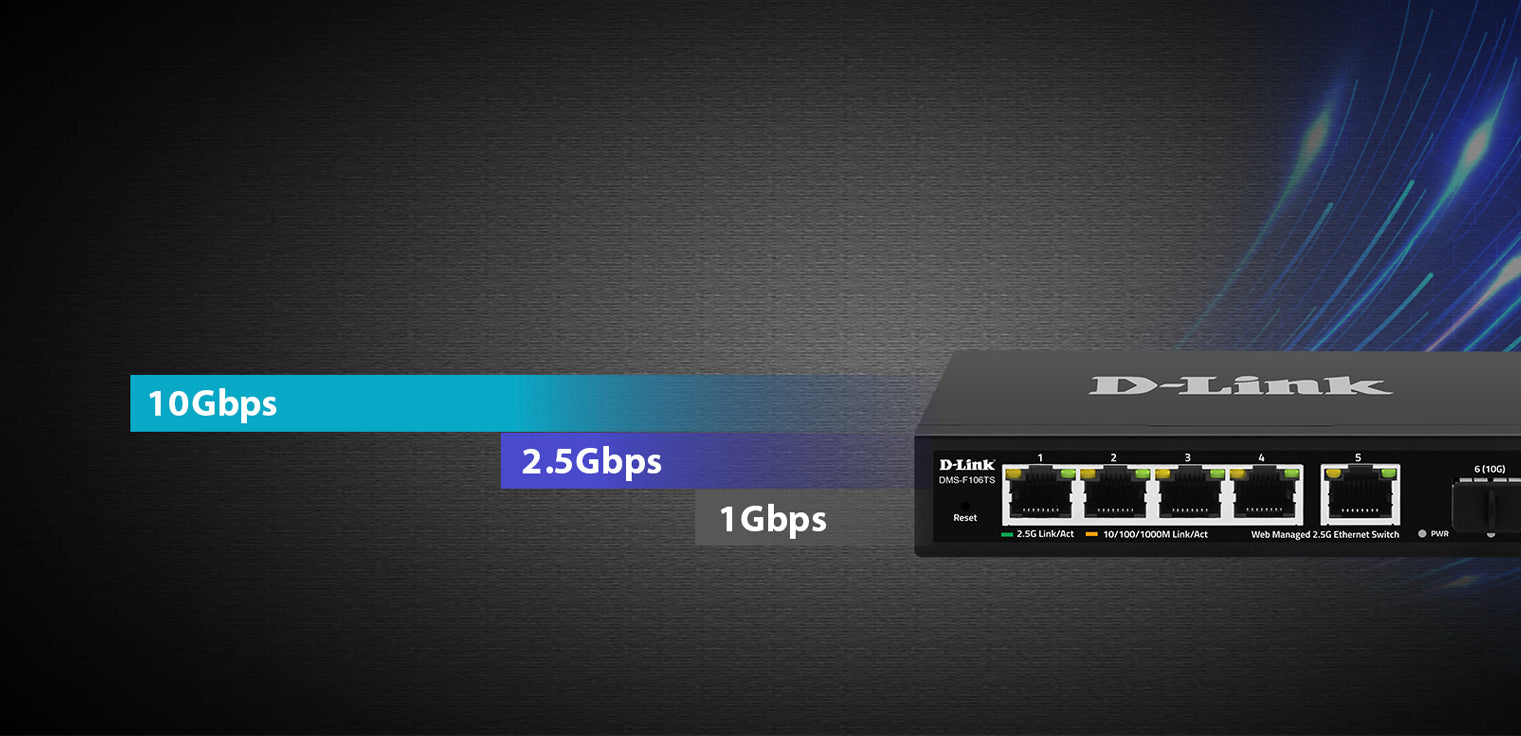

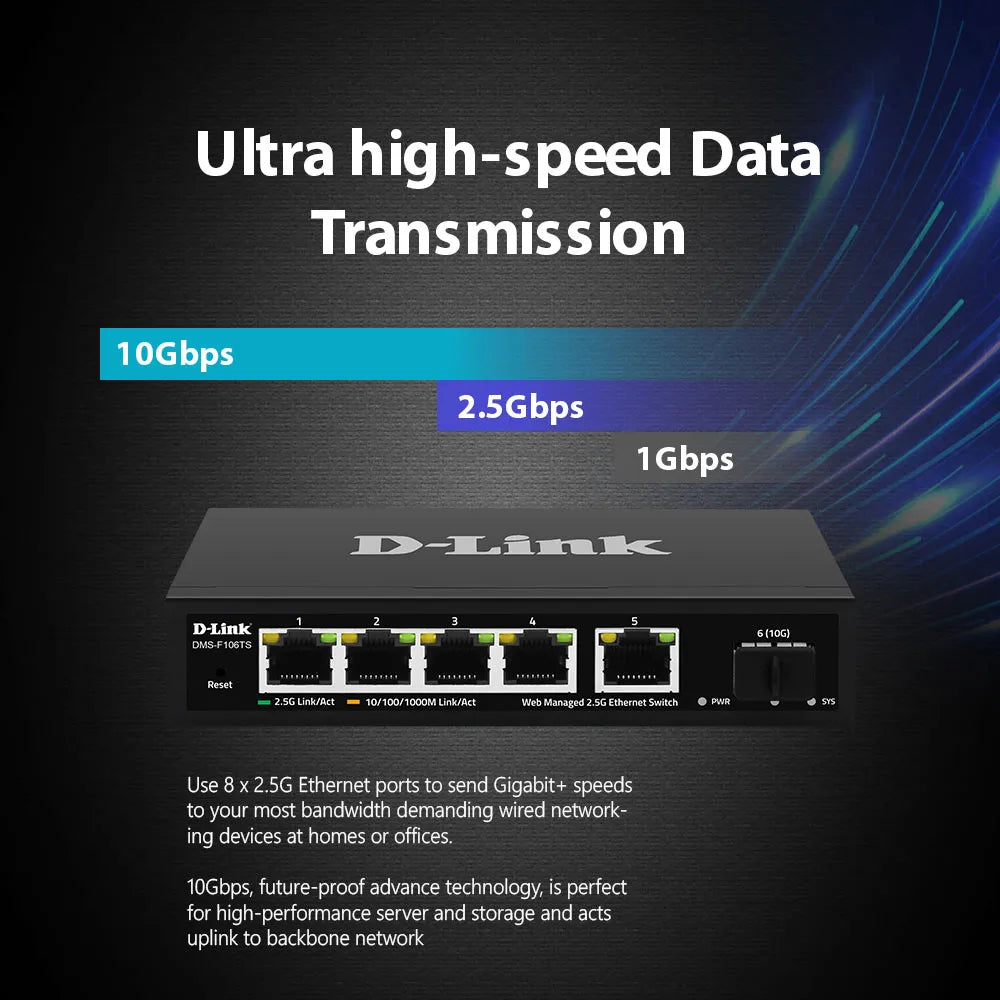

Ultra high-speed Data Transmission

Use 8 x 2.5G Ethernet ports to send Gigabit+ speeds to your most bandwidth demanding wired networking devices at homes or offices.
10Gbps, future-proof advance technology, is perfect for high-performance server and storage and acts uplink to backbone network

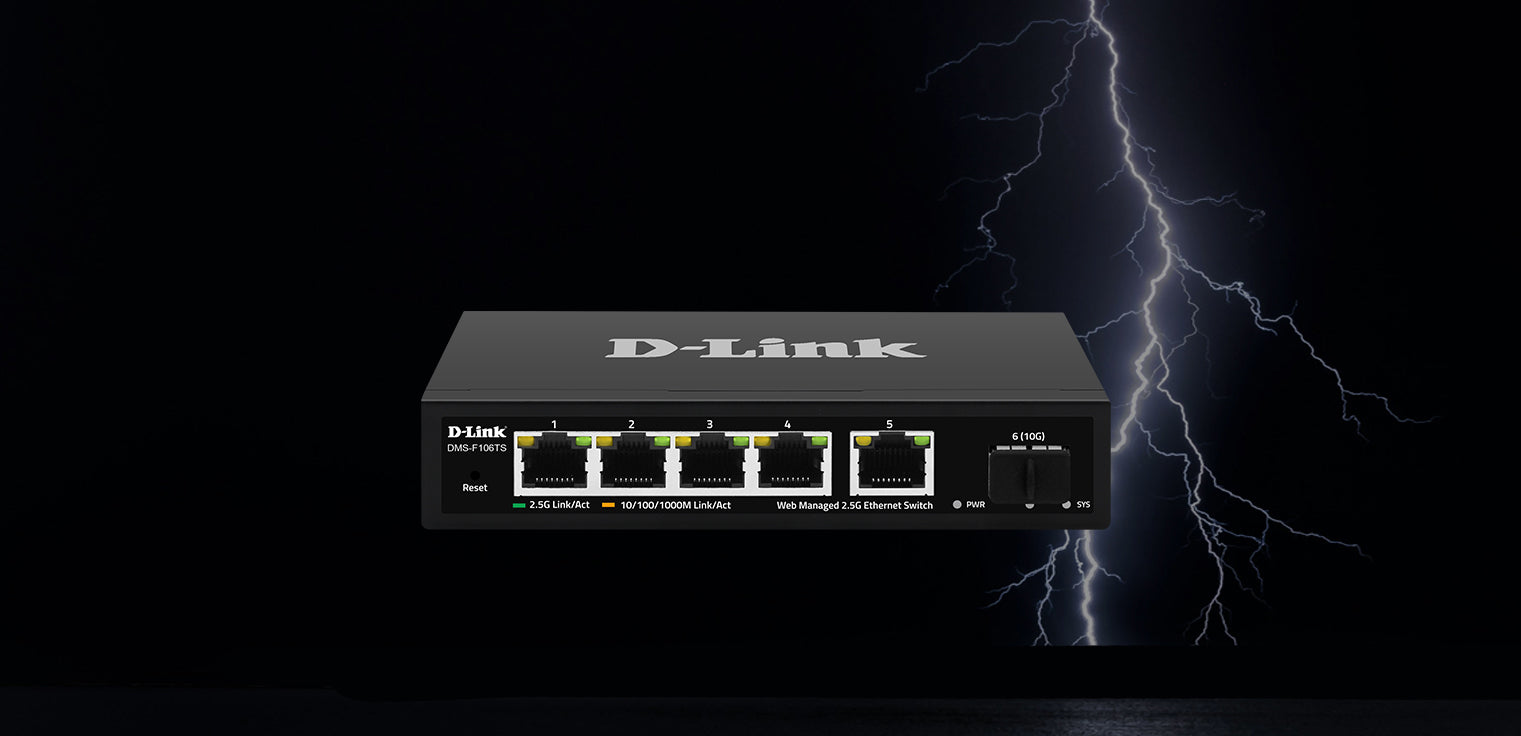

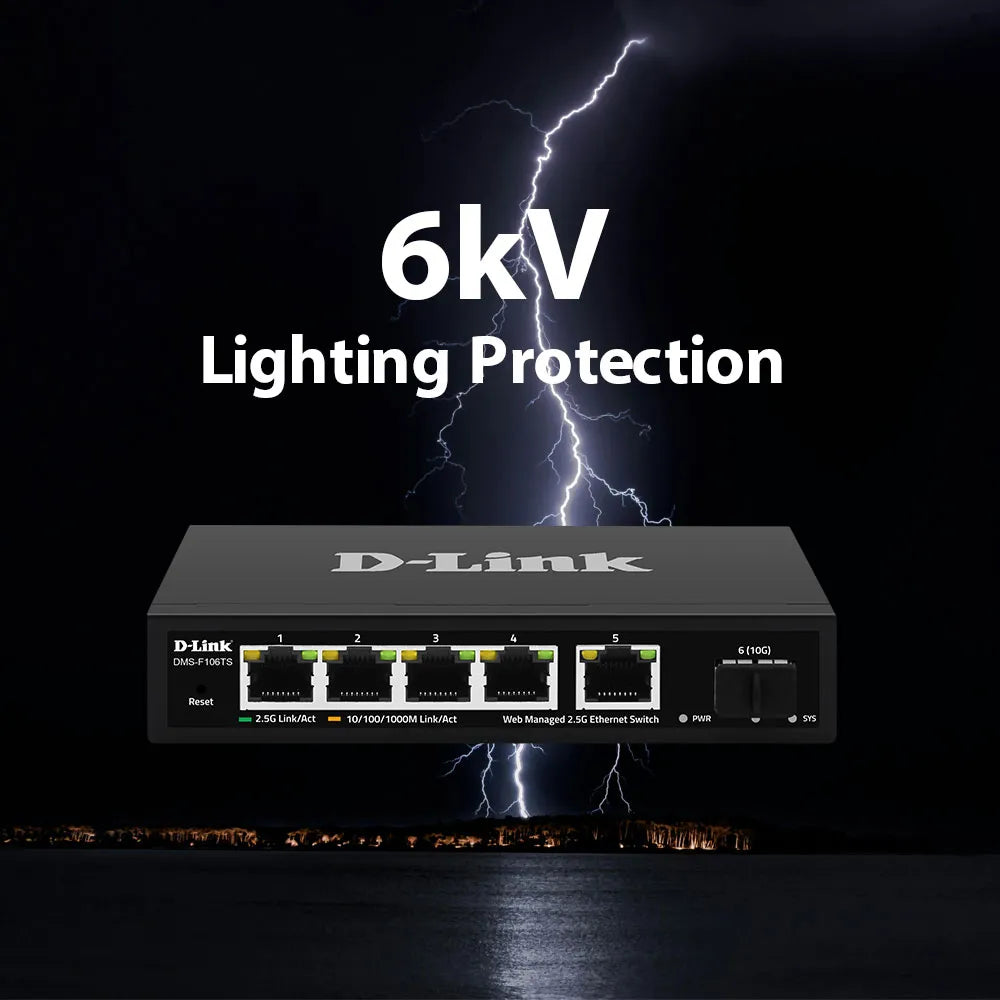

6kV Lighting Protection

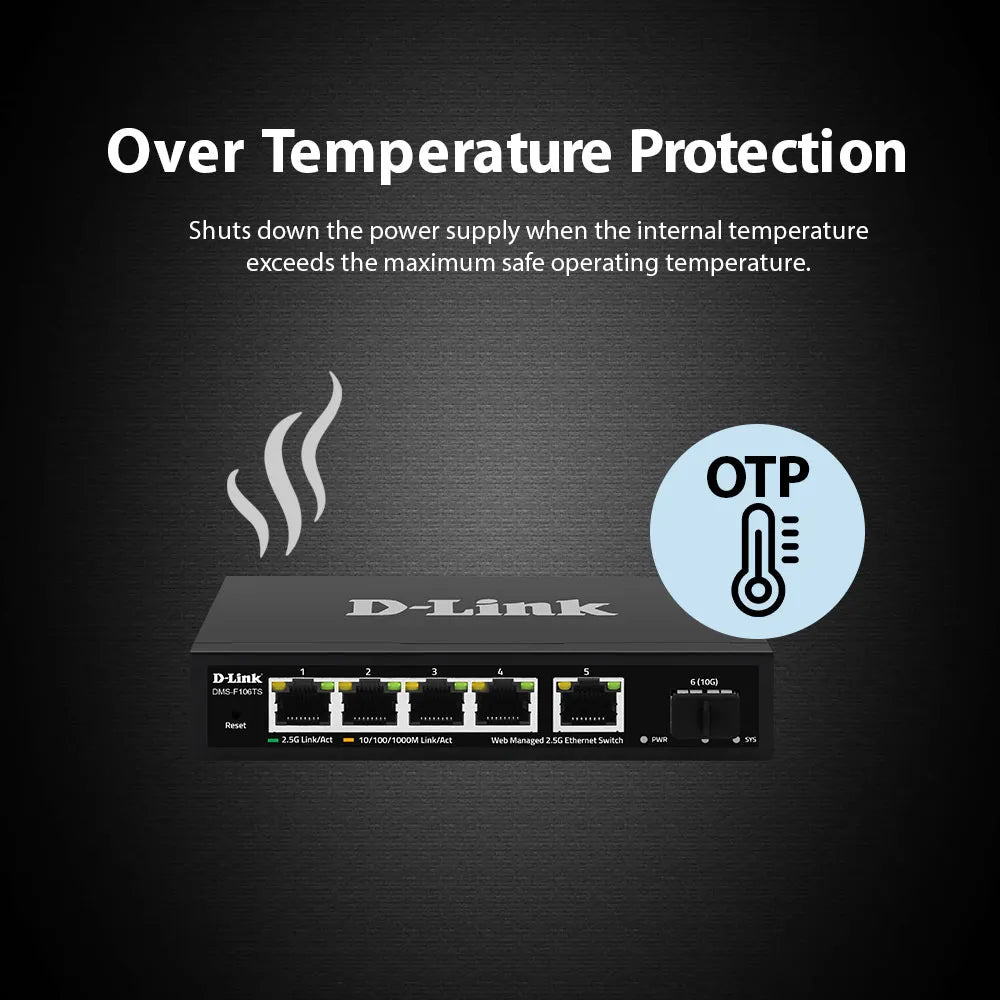

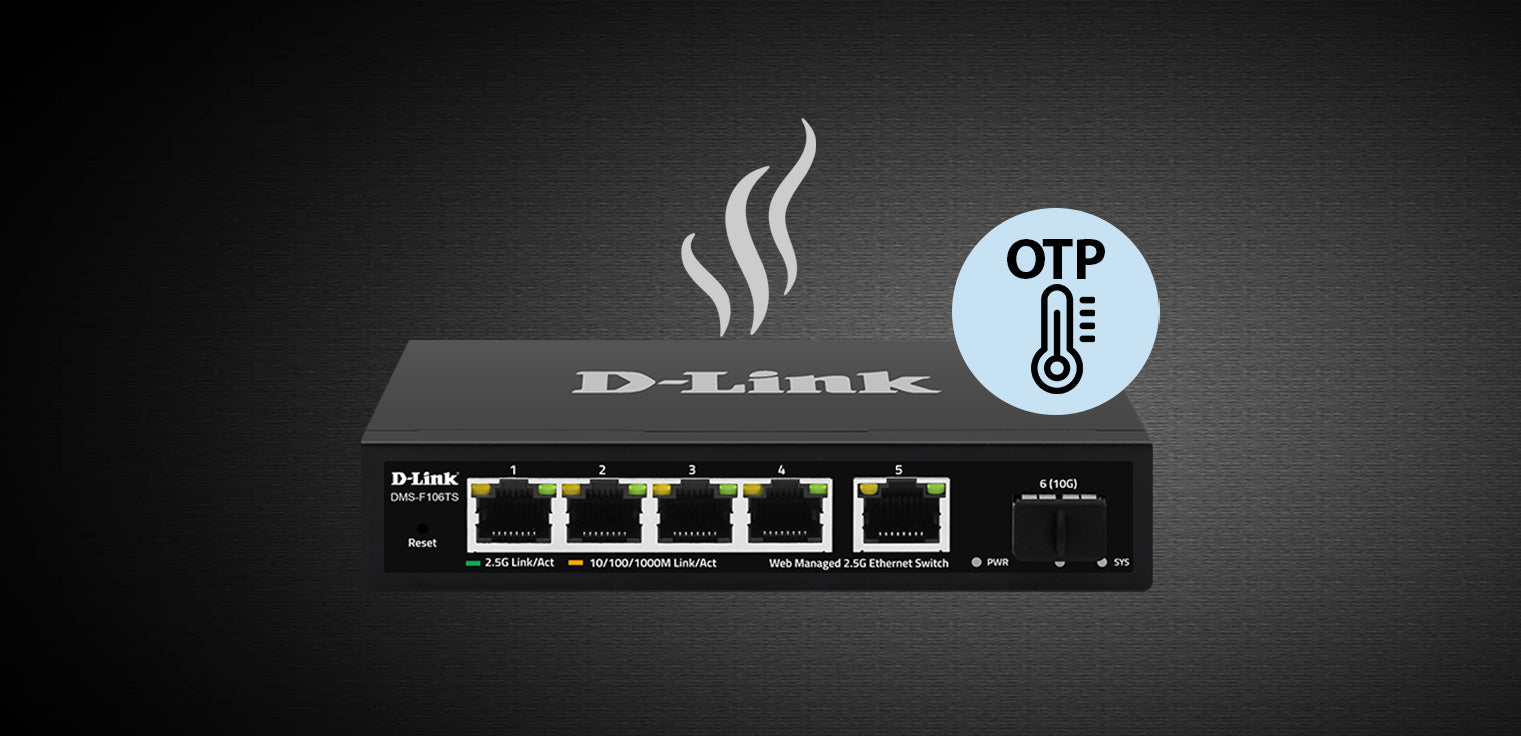

Over Temperature Protection

Shuts down the power supply when the internal temperature
exceeds the maximum safe operating temperature.

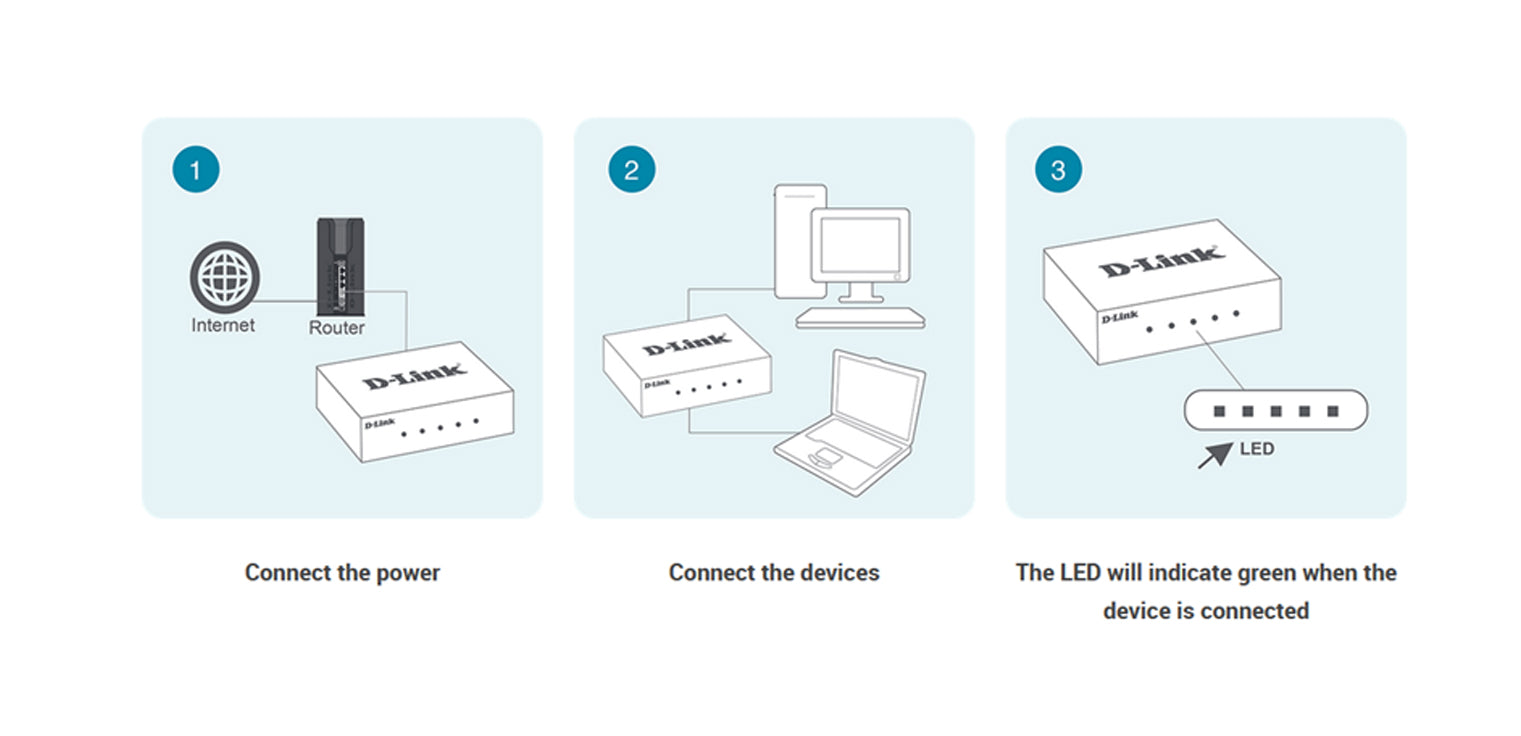

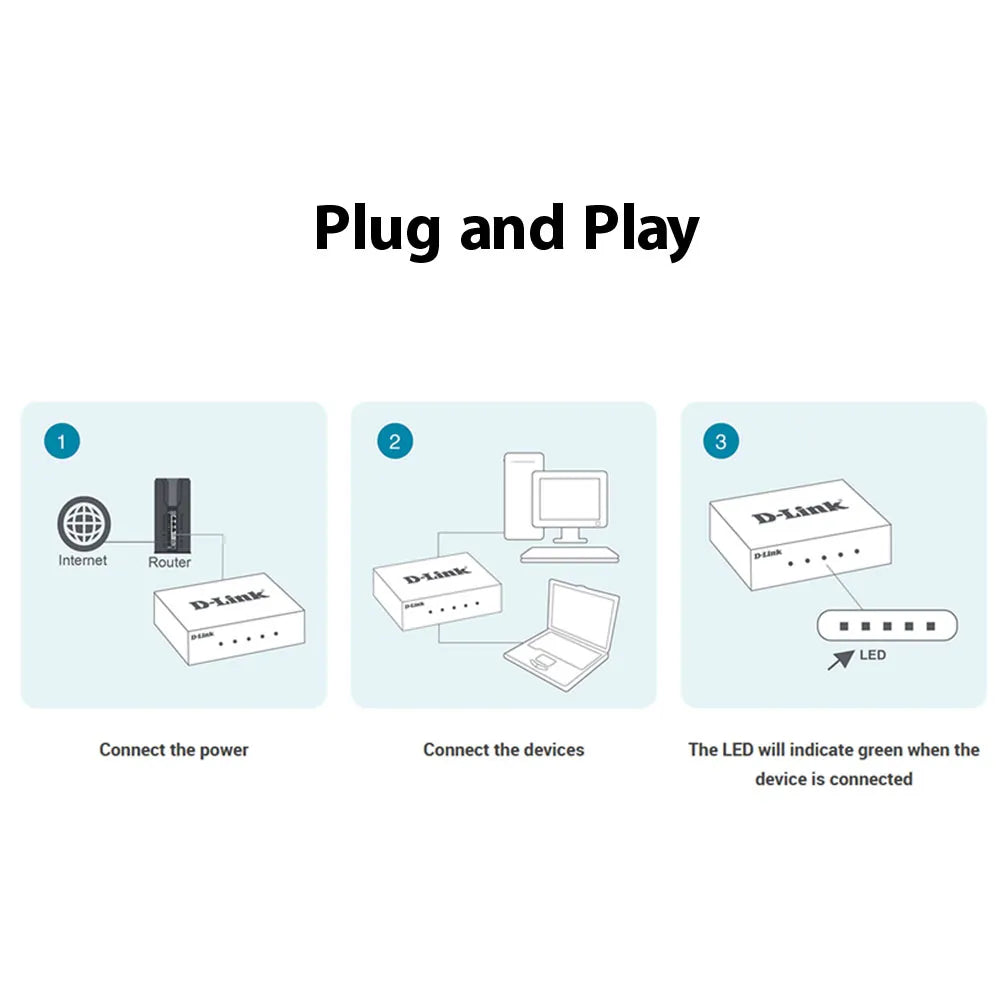

Simplified Installation

All the ports on the DMS-F106TS support automatic MDI/MDIX crossover without any cables.
Each port connects the server, hub, router, or switch easily just by plugging in the cable.
Besides, the DMS-F106TS ports feature LED indicators. With the indicators, you can easily distinguish link status.

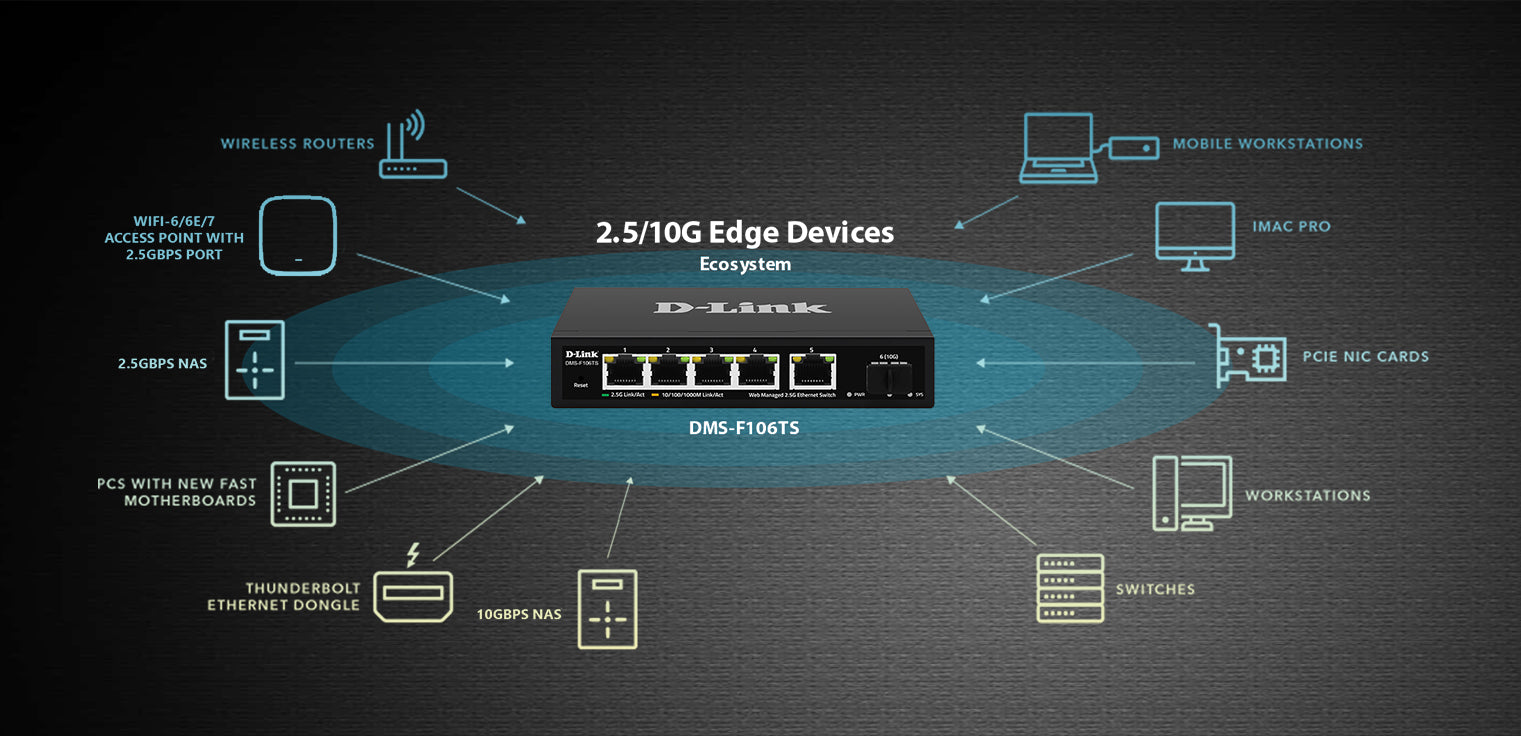

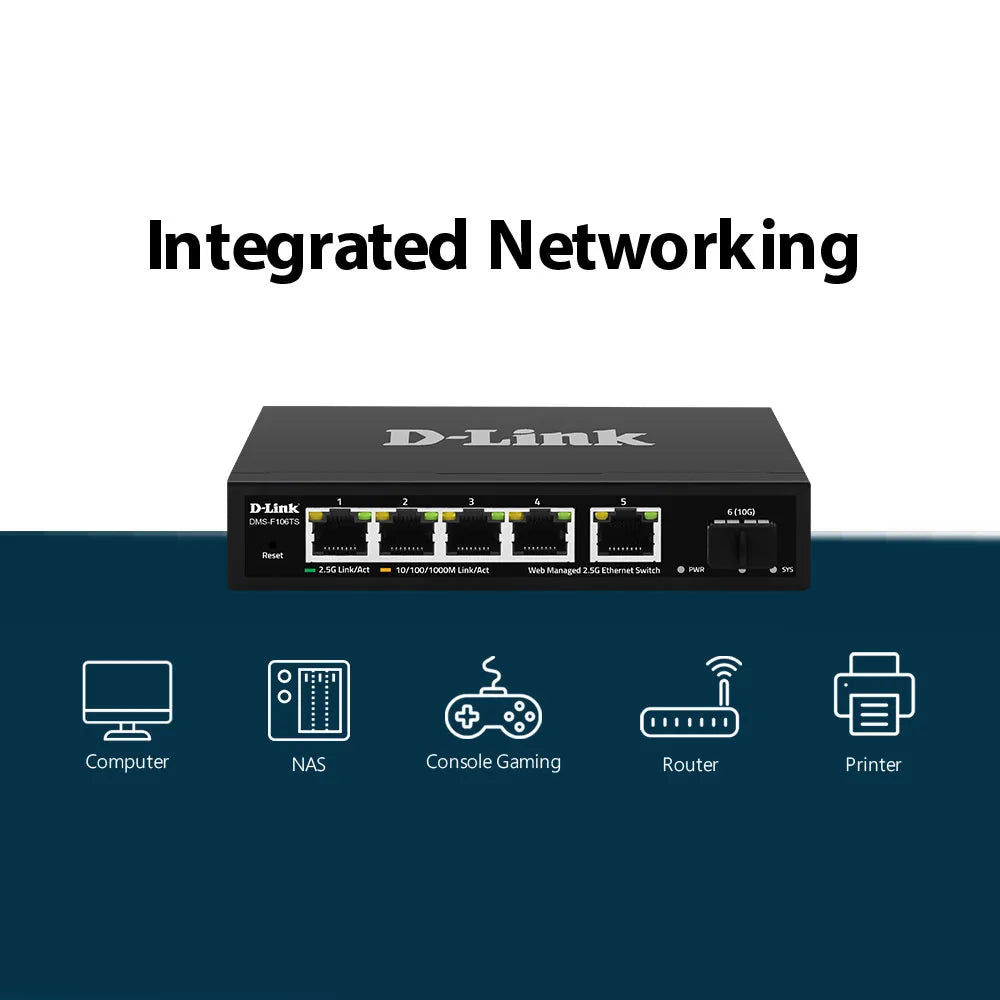

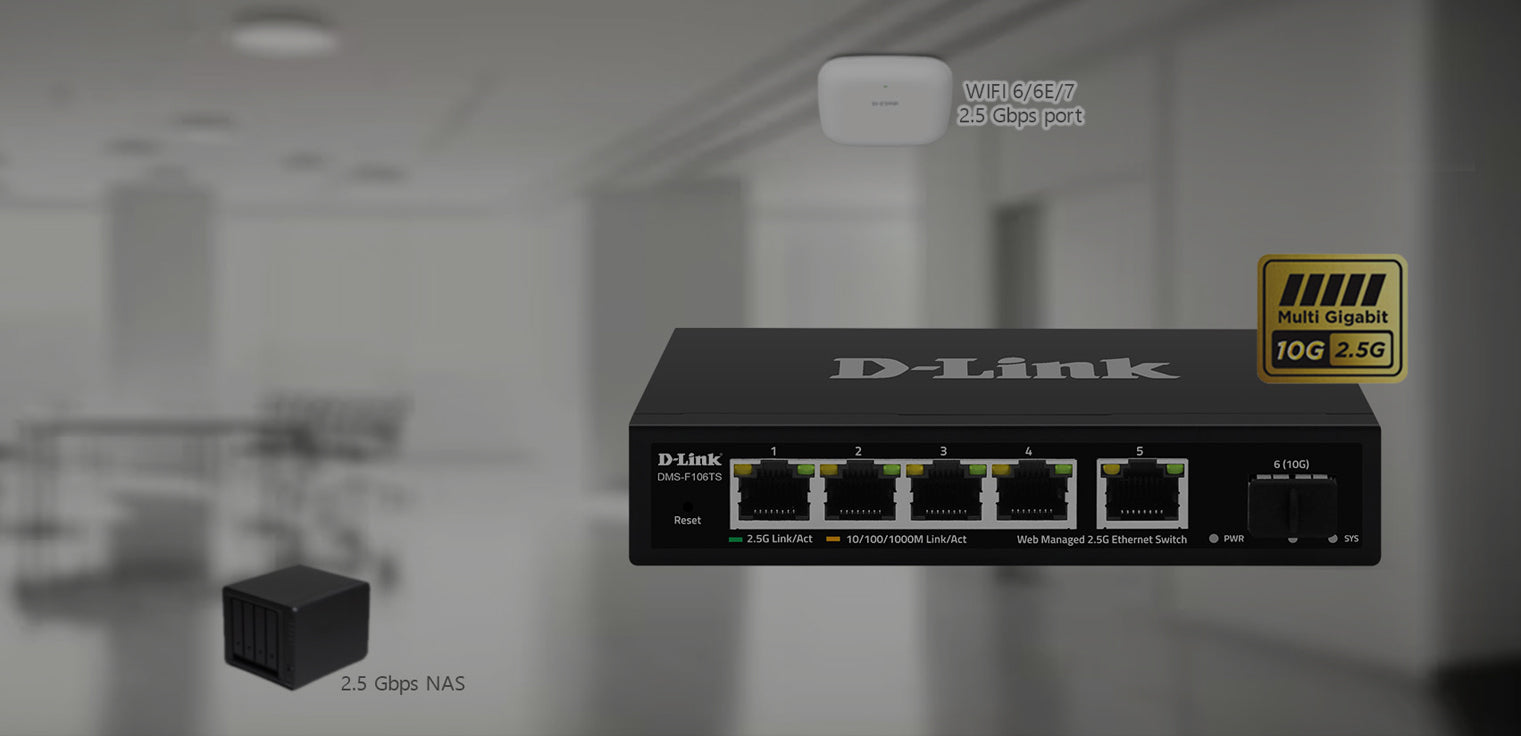

Integrated Networking

Tech Specifications

Hardware

Interface

• 5*2.5G RJ45 port

• 1*10G SFP+ port

Port Standard

• IEEE802.3 (Ethernet)
• IEEE802.3u (Fast Ethernet)
• IEEE802.3ab (Gigabit Ethernet)
• IEEE 802.3bz (5G Ethernet)
• IEEE 802.3z (Gigabit Ethernet)
• IEEE 802.3ae (10 Gigabit Ethernet)
• IEEE802.3x (Flow Control)

VLAN

• VLAN range 1-4094, maximum active VLAN is 31

Power Supply

• AC 100-240V 50/60Hz
• DC 12V 1A

General

Switching Capacity

• 45bps

Packet Forwarding Rate

• 33.48Mpps

Packet Buffer

• 8Mbit

MAC Address Table

• 4K

Jumbo Frame

• support

Transmission Method

• Store and Forward

Surge Protection

• Surge protection: common mode 6KV, differential mode 2KV ;
• Electrostatic ESD: air 8KV, contact 6KV

Operating Temperature

• 0~40°C

Storage Temperature

• -40 °C to 70 °C

Operation Humidity

• 10%~90%，non condensing

Storage Humidity

• 5%~95%，non condensing

Manager Access

• HTTP

Manager IP

• Static Address
• DHCP Client

User Management

• support

Firmware Management

• Firmware upgrade

Configuration Management

• Upload/Backup Configuration

Save

• support

Restart

• support

Factory Defaults

• support

Physical

Mainboard Power Consumption

• 5.92W

Product Dimensions

• 140 x 93 x 28mm

Product Net Weight

• 0.33KG
