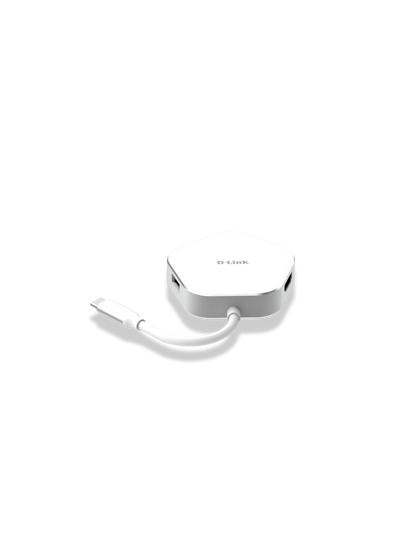

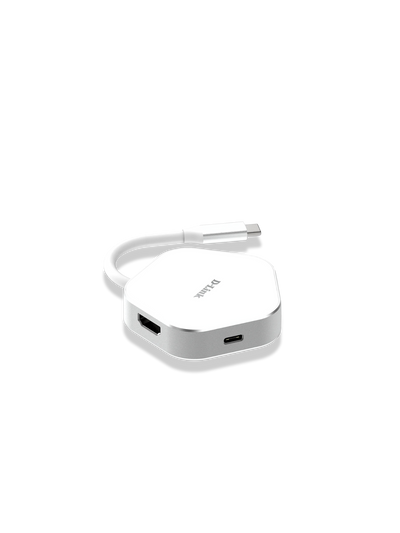

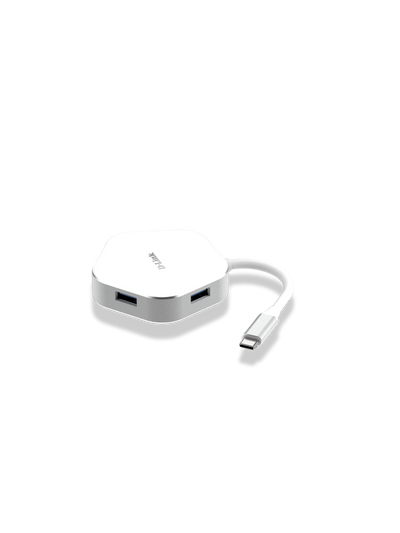

4-in-1 USB-C Hub with HDMI and Power Delivery

SKU
  • x2 SuperSpeed USB 3.0 ports
  • x1 HDMI, supports up to 4K resolutions
  • x1 USB Type-C port with data sync and power delivery up to 60W
  • x1 built-in USB Type-C cable connector
  • Portable design, plug & play, Mac/Windows/Linux compatible
  • 2-Year D-Link Warranty from a global brand

Pairs well with

* Warranty Details
Downloads Datasheet

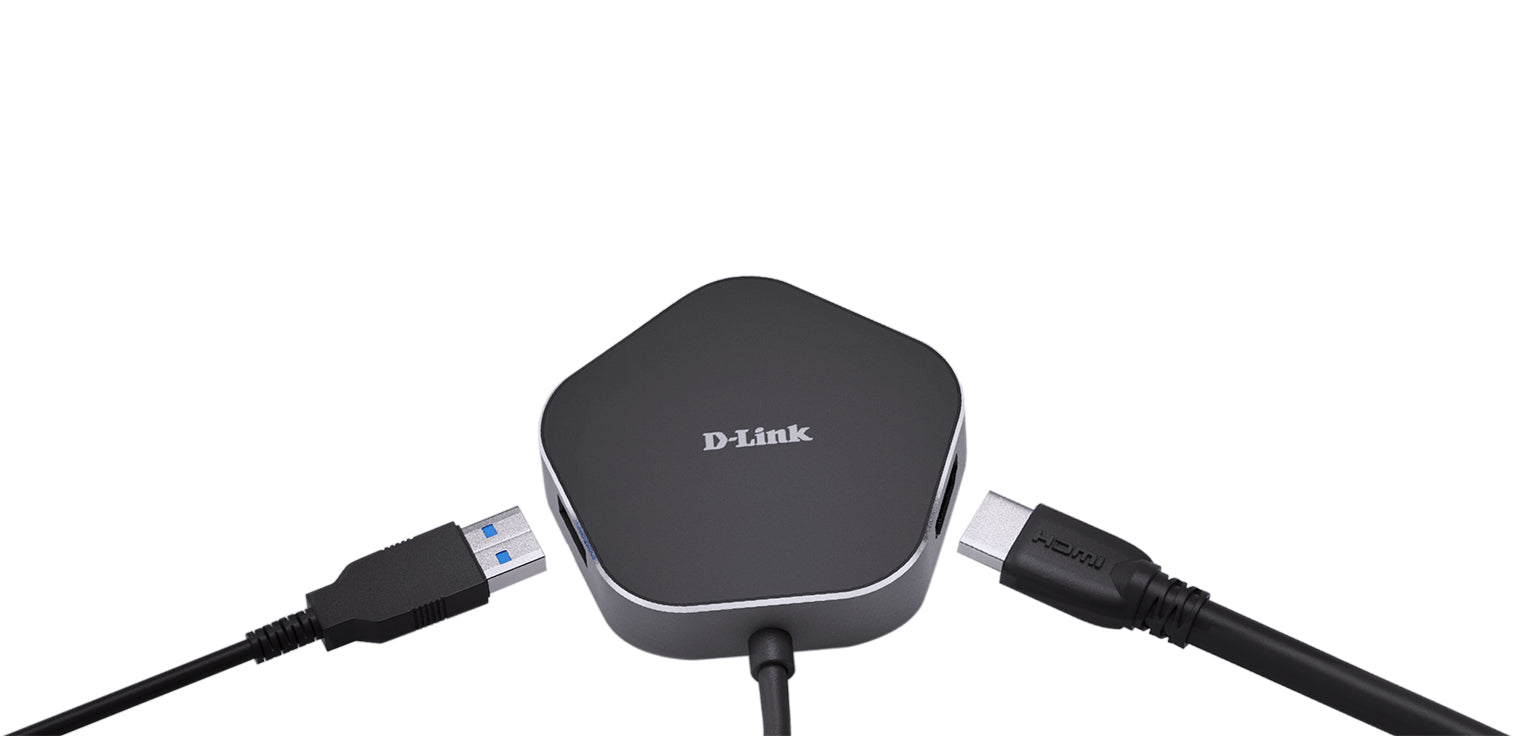

Turn one port into four new ports.

Instantly add an HDMI port for a second display, two USB 3.0 ports, while keeping a USB-C port free for your laptop simply by plugging the hub into a USB-C port.

Transfer Large Files in Seconds

Use the hub to quickly transfer files to your USB devices like phones, tablets, external hard drives, and flash drives, to your computer.

It has the latest USB 3.0 technology built in to make transfers of music, HD videos, entire photo albums, backups and other large files up to x10 faster than USB 2.0. You can connect older USB 2.0/1.1/1.0 devices as well as ones using the latest USB 3.0 technology.

Easy to take with you everywhere.

The hub’s compact design makes it convenient to carry with you anywhere and it fits into any laptop bag. When you need it, simply plug the hub into any Mac, Windows or Linux computer with a USB-C port. It’s that easy. No drivers needed, and no complex software installation required.

Extend your screen to a vivid 4K monitor.

Plug into the hub’s HDMI port to instantly mirror or extend your display to a second monitor with vibrant 4K resolution. And full backwards compatibility means you can connect to a 720p or 1080p monitor.

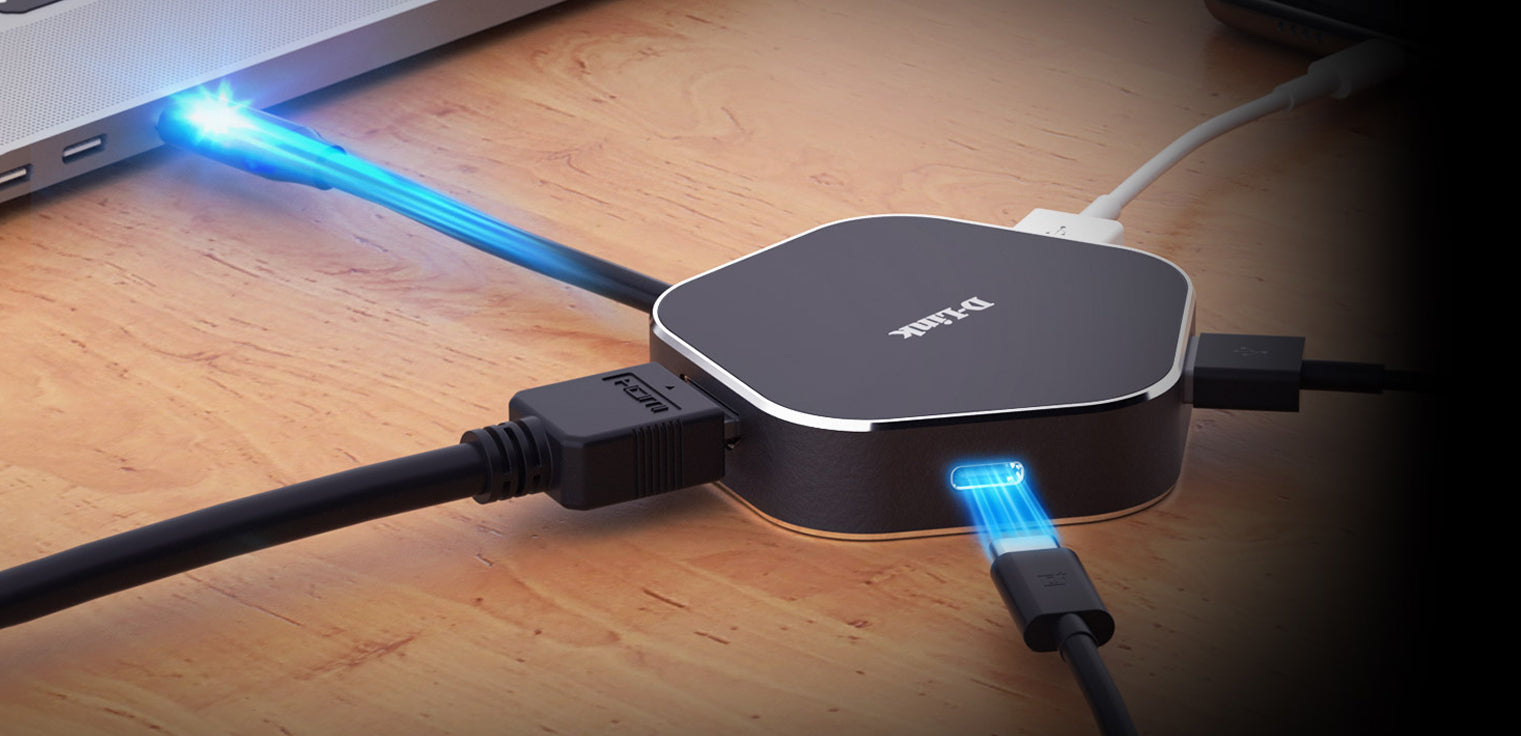

Deliver power through the hub.

With the Power Delivery feature, you can charge your laptop at the same time as connecting to your USB peripheral devices. Simply connect your USB-C charger to the hub’s USB-C port to provide up to 60W of power to your laptop.

Tech Specifications

Hardware

Standards

• HDMI 1.4
• USB Specification Version 3.0
• HDCP 2.2
• USB Specification Version 2.0
• DisplayPort Alternate Mode
• USB Specification Version 1.1

Power Delivery

• USB Type-C port: 20 V @ 3 A

Device Interfaces

• Two USB 3.0 Type-A (female) ports
• USB 3.0 Type-C (female) port
• HDMI Port (3840 x 2160 or 4096 x 2160 pixels @ 30 HZ) backwards compatible to 1080p and 720p • USB Type-C (male) connector compliant with the Thunderbolt 3 Port

General

Temperature

• Operating: 0 to 70 °C (32 to 158 °F)
• Storage: -25 to 85 °C (-13 to 185 °F)

Minimum System Requirements

• Computer with Microsoft Windows® OS, Mac OS® , or Chrome OSTM.
• Available USB Type-C Port with DisplayPort Alternate Mode Supported

Power

• Input: Bus-powered
• Consumption: 31 mA, 5 V DC

Humidity

• Operating: 5% to 80% RH, non-condensing
• Storage: 5% to 80% RH, non-condensing

Certifications

• CE
• FCC
• IC
• RCM

Physical

Dimensions

• 68 x 67 x 16 mm (2.68 x 2.64 x 0.63 in)
• Cable length: 11.5 cm (4.53 in)

Weight

• 50.0 g (1.76 oz)
