USB-C to HDMI Adapter
USB-C to HDMI Adapter

USB-C to HDMI Adapter

SKU

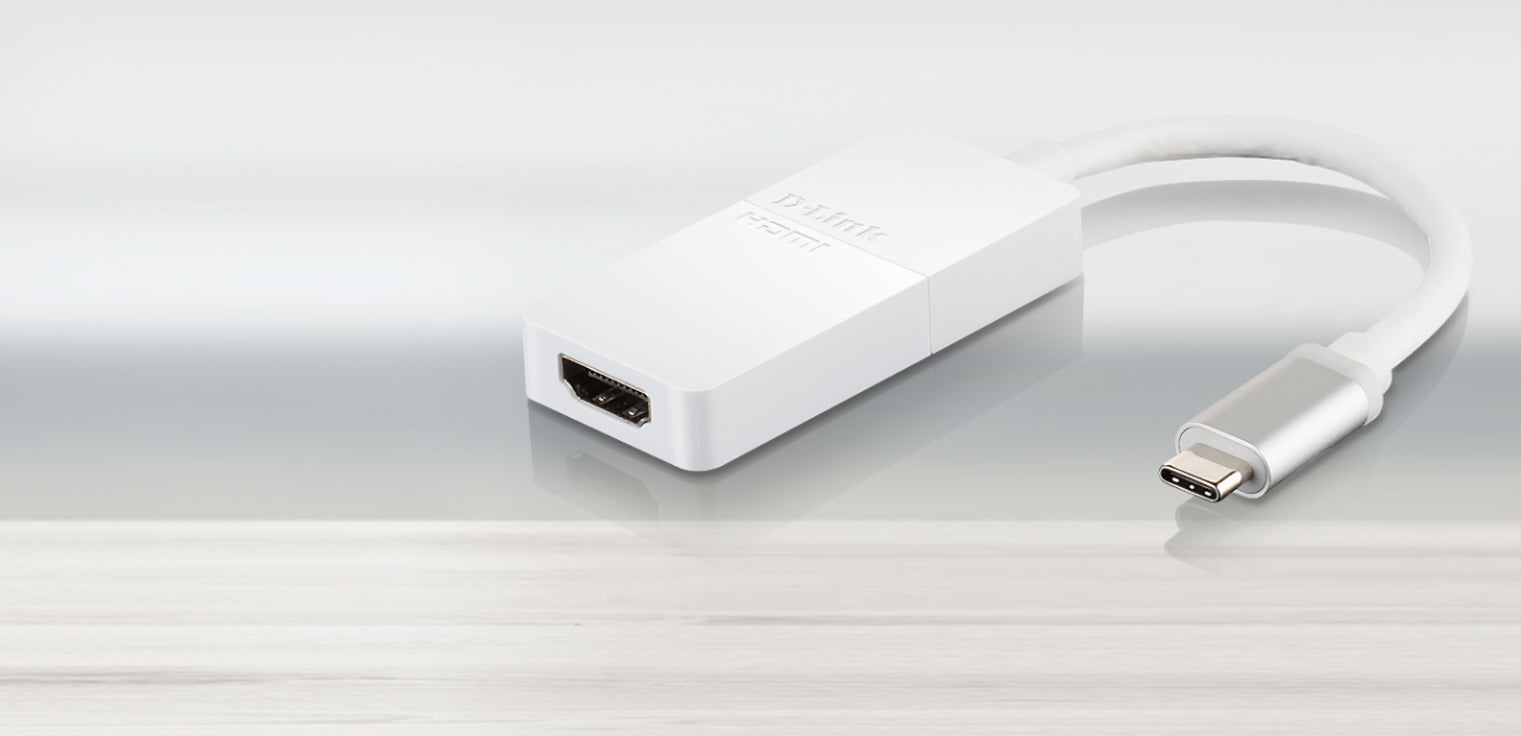

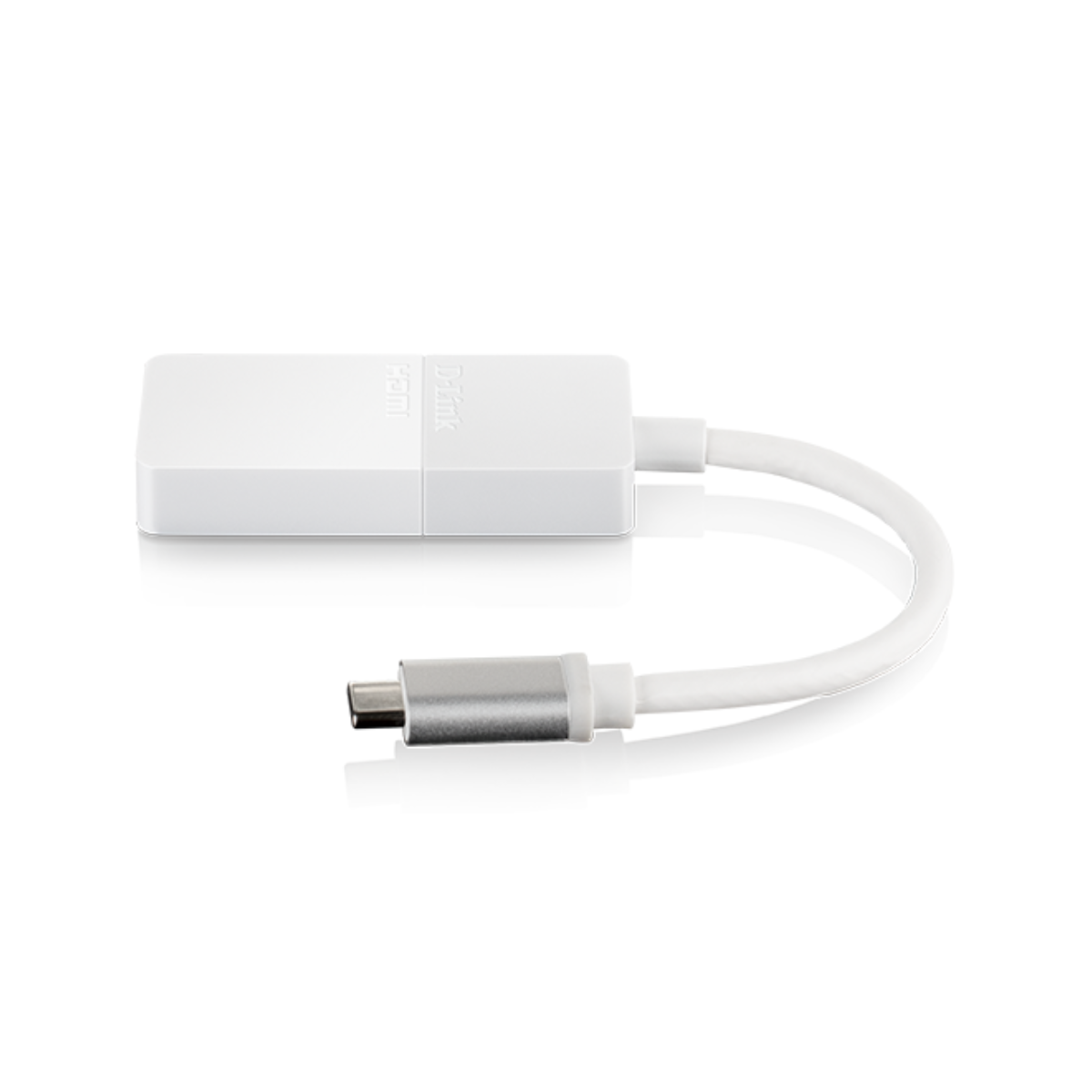

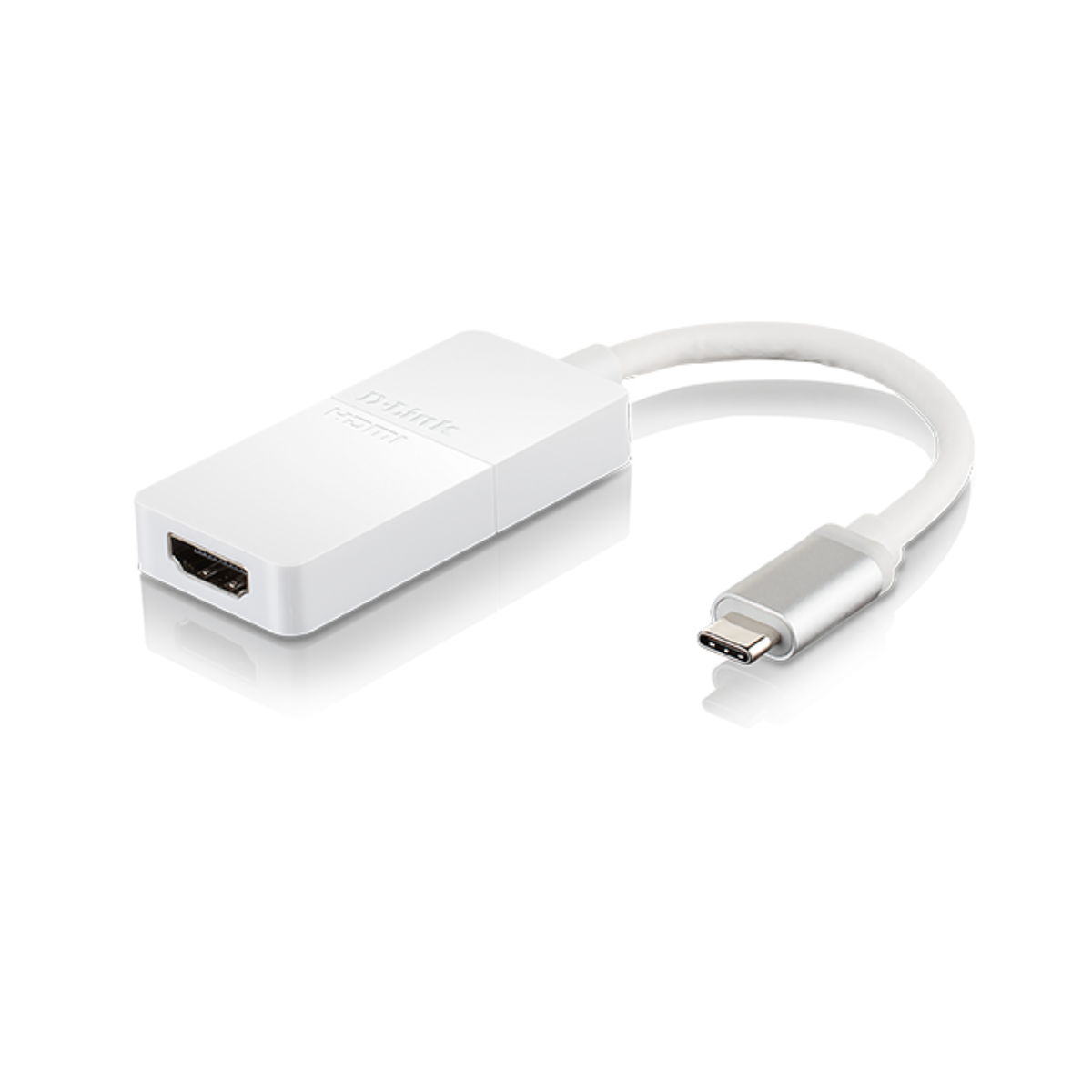

The DUB-V120 USB-C to HDMI Adapter allows you to instantly add a second display with HDMI resolution of up to 4K for your ultra-portable laptop.

  • Fully compliant with HDMI
  • Ultra-HD video resolution up to 4K@60 Hz as specified in HDMI 2.0
  • USB-C and Thunderbolt compliant
  • Supports DisplayPort over USB-C alternative mode
  • Plug-and-play installation
  • Compact, portable design

Pairs well with

* Warranty Details
Downloads Datasheet

Easy to Install, Easy to Use

The DUB-V120 USB-C-to HDMI Adapter connects to your computer’s USB Type-C port and runs as soon as it is plugged in. The plug-and-play design ensures that there is no need to install any additional software to your computer. For extra convenience, the adapter’s ultraportable compact design means that you can easily slip the adapter into your pocket or laptop bag and take it with you.

Tech Specifications

Hardware

Device Interfaces

• HDMI Port (3840 x 2160 or 4096 x 2160 pixels @60 Hz)
• USB Type-C Connector (Thunderbolt 3 compliant)

General

Standards

• USB Specification Version 3.1 Gen 1
• HDMI 2.0
• USB Specification Version 2.0
• DisplayPort Alternative Mode
• USB Specification Version 1.1
• EDID

Power

• Input: Bus-powered
• Consumption: 140 mA, (± 10%) 5 V DC

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 70 °C (-4 to 158 °F)

Humidity

• Operating: 10% to 90% RH, non-condensing
• Storage: 5% to 90% RH, non-condensing

Minimum System Requirements

• Computer with Microsoft Windows® OS, Mac OS® , or Chrome OSTM.
• Available USB Type-C Port with DisplayPort Alternate Mode Supported

Certifications

• CE
• IC
• RCM
• FCC
• HDMI

Physical

Dimensions

• 67.0 x 30.5 x 10.5 mm (2.64 x 1.20 x 0.41 in)
• Cable length: 12.3 cm (4.84 in)

Weight

• 26.34 g (0.93 oz)
