High Speed 5G NR (Dual SIM w/ Failover)

5G speeds of up to 3.4 Gbps1, perfect for high-bandwidth, time-sensitive and mission-critical M2M applications.

Icon

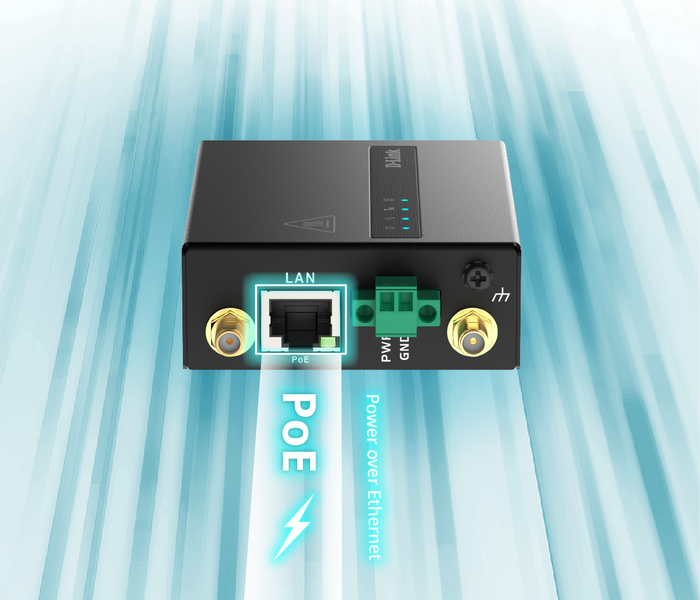

2.5 GbE PoE Port (PSE)

2.5 GbE PoE LAN port to connect PD device for high-throughput mission-critical M2M applications.

Icon

Dual-SIM Failover

Two SIM slots with auto-failover redundancy to ensure uninterrupted cellular WAN connectivity.

Icon

Industrial-Grade Durability

Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.

Icon

Secure VPN Protection

Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.

Icon

Centralized Management

Conveniently manage devices from anywhere via the D-ECS management platform.

Ultra-Fast 5G PoE Connectivity for Efficient Operation

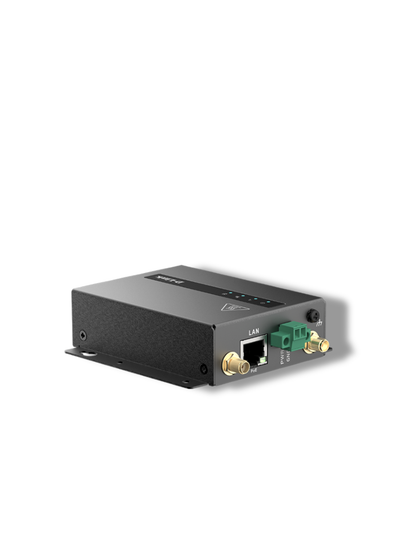

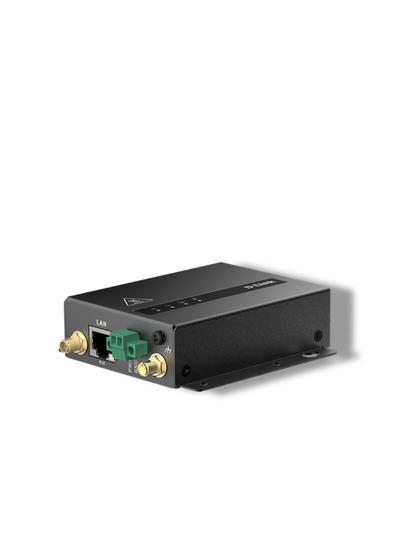

The DWM-311-GP 5G M2M PoE Modem delivers lightning-fast 5G and Ethernet connectivity with instant, driverless access—no pre-configuration required. Its plug-and-play design and user-friendly web interface simplify deployment and network management across various applications. Featuring a high-speed 2.5G Ethernet port with 802.3af/at PoE support, it powers and connects Ethernet PD devices while automatically rebooting unresponsive devices for uninterrupted operation. Ideal for IP cameras, access points, PoE sensors, and VoIP systems, the DWM-311-GP ensures reliable, high-performance connectivity for traffic lights, small shops, surveillance systems, and Autonomous Mobile Robots (AMR).

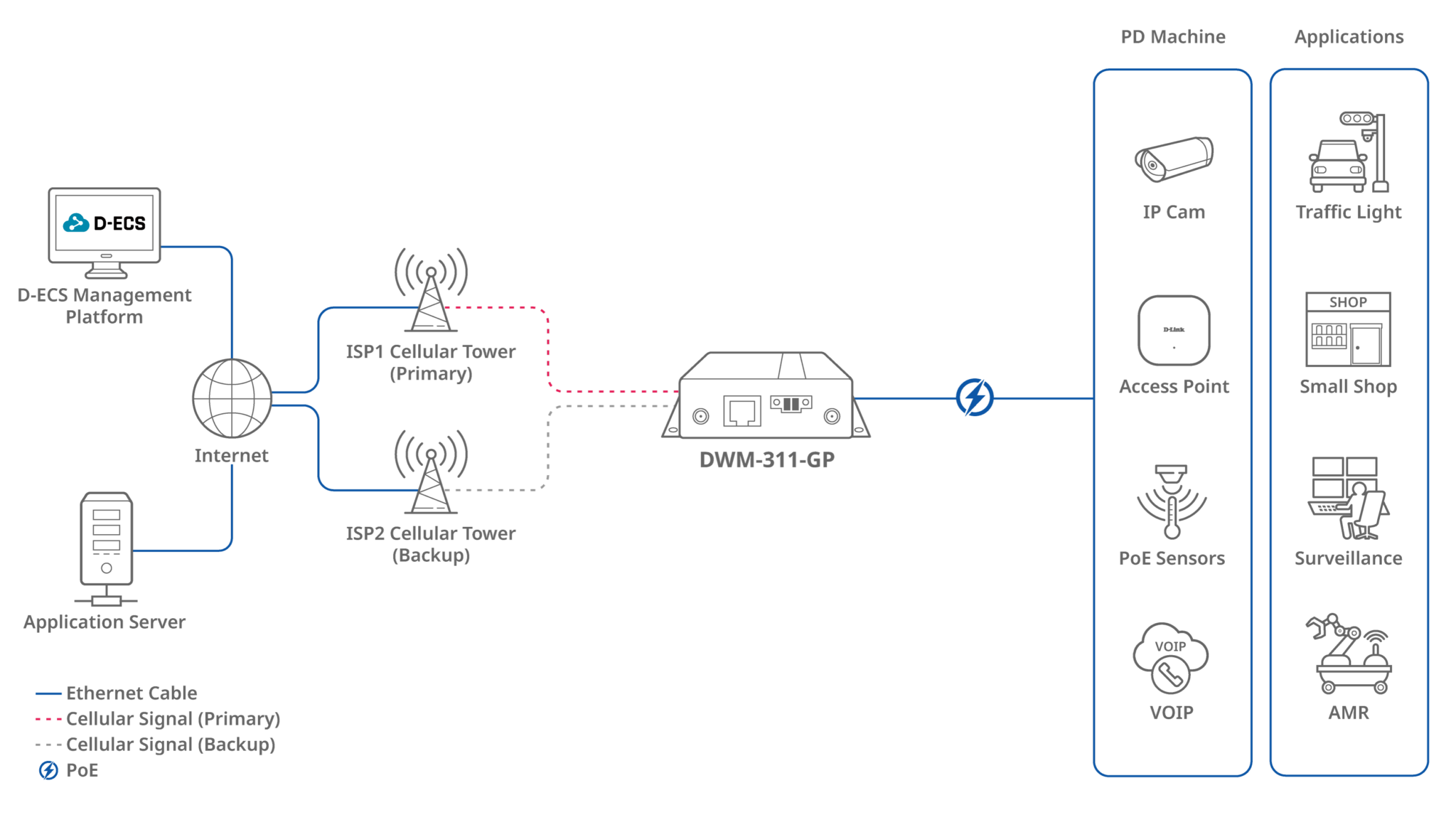

5G PoE Diagram

Versatile Applications

Surveillance​

Surveillance​

Enhance security surveillance by utilizing PoE for both power and data on a single cable, facilitating video streaming over cellular networks.​

Access Point​

Access Point​

Expand Wi-Fi coverage in remote or hard-to-reach areas with PoE-powered access points, using the 4G/5G PoE Modem for reliable Internet backhaul.​

IoT Sensor​

IoT Sensor​

Power and connect IoT sensors in remote locations, enabling real-time data monitoring and transfer over secure 4G/5G networks.​

Smart Pole​

Smart Pole​

Power smart pole’s PD device with PoE to deliver real-time updates, public information, and advertisements for smarter urban services.​​

DGS-1048: SWITCH KHÔNG QUẢN LÝ 10/100/1000 48 CỔNG

Switch Gigabit Độc Lập Không Quản Lý 48 Cổng 10/100/1000Base-T (Vỏ kim loại)

Switch Gigabit Ethernet DGS-1048 mang đến giải pháp nâng cấp hệ thống mạng hiện tại lên chuẩn 1000Mbps với hiệu năng cao, chi phí tối ưu, vận hành mượt mà và dễ dàng triển khai. Toàn bộ 48 cổng đều hỗ trợ tính năng tự động nhận diện cáp thẳng/chéo (Auto MDI/MDIX), cho phép người dùng thiết lập nhanh chóng theo cơ chế cắm và chạy (plug-and-play) mà không cần quan tâm đến chuẩn cáp. Bên cạnh đó, nhờ tích hợp công nghệ tiết kiệm năng lượng tiên tiến, DGS-1048 giúp giảm thiểu điện năng tiêu thụ, trở thành một giải pháp hạ tầng mạng thân thiện với môi trường.

  • 48 cổng RJ45 tốc độ 10/100/1000Mbps.
  • Công nghệ tiên tiến giúp tối ưu và tiết kiệm điện năng.
  • Hỗ trợ tự động học địa chỉ MAC và tự động nhận diện cáp (Auto MDI/MDIX).
  • Thiết kế vỏ thép tiêu chuẩn 19-inch, dễ dàng lắp đặt vào tủ rack.

Công Nghệ Xanh (Green Technology)
Mẫu switch gắn tủ rack 48 cổng Gigabit DGS-1048 được ứng dụng các công nghệ tiết kiệm năng lượng đột phá. Sản phẩm tuân thủ nghiêm ngặt tiêu chuẩn RoHS của Châu Âu về việc hạn chế sử dụng vật liệu độc hại. Ngoài ra, phần lớn vật liệu đóng gói của thiết bị đều được thiết kế để có thể tái chế.

Hiệu Năng Cao (High Performance)
Tất cả 48 cổng kết nối đều là chuẩn Gigabit RJ-45, đáp ứng băng thông cho các tập tin dung lượng lớn, đồng thời tương thích ngược hoàn toàn với các thiết bị Ethernet 10Mbps và 100Mbps. Sở hữu kiến trúc chuyển mạch không tắc nghẽn (non-blocking), DGS-1048 có khả năng chuyển tiếp và lọc gói tin ở tốc độ tối đa, đảm bảo thông lượng truyền tải cao nhất. Việc hỗ trợ khung Jumbo 12KB giúp cải thiện đáng kể hiệu suất khi xử lý dữ liệu lớn. Kết hợp cùng tính năng kiểm soát lưu lượng IEEE 802.3x cho chế độ Song công toàn phần (Full Duplex) và back pressure cho chế độ Bán song công (Half Duplex), thiết bị giúp triệt tiêu tình trạng tắc nghẽn mạng, đảm bảo khả năng vận hành ổn định. Đây là lựa chọn lý tưởng để nâng cấp hạ tầng lên chuẩn Gigabit trong khi vẫn bảo vệ trọn vẹn các khoản đầu tư trước đó của doanh nghiệp.

Dễ Dàng Sử Dụng (Easy to Use)
Các tính năng tự động của dòng switch gigabit này giúp quá trình triển khai trở nên đơn giản, cắm là chạy và không đòi hỏi cấu hình phức tạp. Tính năng Auto MDI/MDIX loại bỏ hoàn toàn sự phụ thuộc vào cáp chéo. Đồng thời, chức năng đàm phán tự động (auto-negotiation) trên mỗi cổng sẽ tự động nhận diện tốc độ liên kết của thiết bị mạng (10, 100 hoặc 1000 Mbps) để tinh chỉnh thông minh, mang lại sự tương thích và hiệu năng hoạt động tối ưu.

General

Security
  • VPN Tunnel: OpenVPN, WireGuard, VPN Usage: Client mode
Firewall
  • Firewall: IPS, Access Control: Packet Filter, URL Blocking, MAC Filter
Administration
  • Configuration: Web UI, SSH, Management: D-Link D-ECS2, System: FW Upgrade, Reboot & Reset, System Time, NTP Service, Scheduling: reboot rule policy, working day, SMS Service: SMS Inbox, SMS Event Management
Status
  • Network Status: Connection information, Cellular Signal Quality, Cellular Mobile: Cellular Modem Information/Status, Cellular Network Status, Cellular Signal Quality, Client: Client List, Security: VPN Status
Environment
  • OP/Store Temp.: ( Operating Temperature -30 to 70 ˚C (-22 °F to 158 °F), Storage Temperature -40 to 85 ˚C (-40 °F to 185 °F) ), Humidity: (Operating Humidity 10% to 95% non-condensing, Storage Humidity 0 to 95% non-condensing), Dimensions: 93 x 90 x 27 mm
