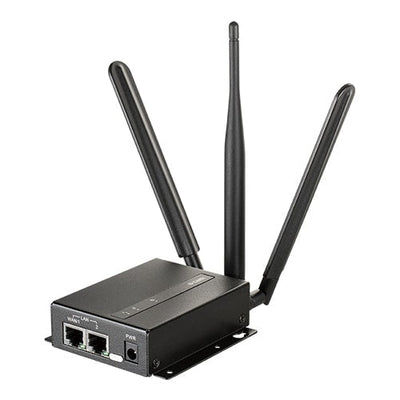

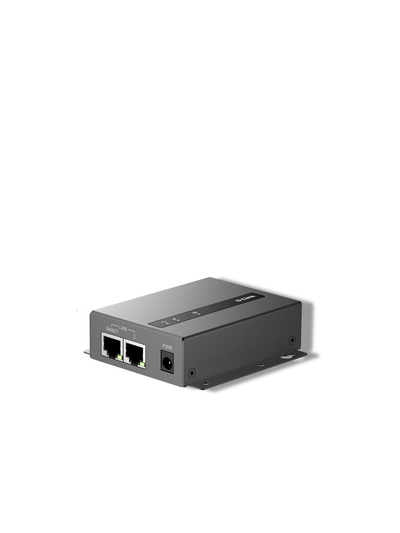

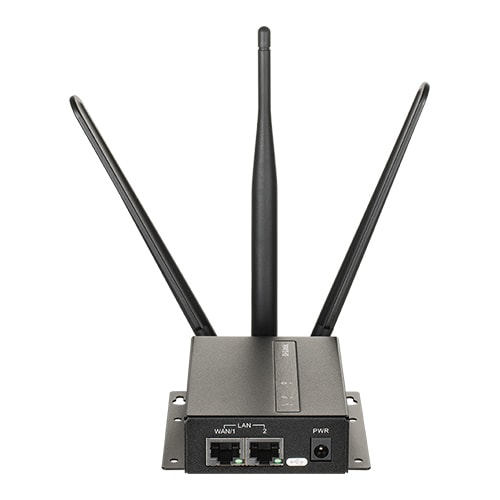

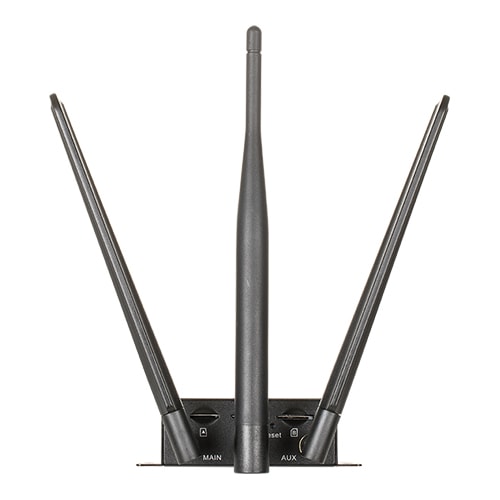

4G M2M Router

DWM-313

Product variants

4G LTE speeds of up to 150 Mbps¹ for fast Internet access and data transfer
Wi-Fi speeds of up to 150 Mbps¹ to connect multiple Wi-Fi devices
1 x Micro SD card slot is specifically designed for data log storage
1 x Fast Ethernet WAN/LAN port configurable as wired WAN access
1 x Fast Ethernet LAN port for reliable wired connectivity
2 x SIM slots for cellular WAN failover redundancy
No set up required, simply plug it in and your network is ready to go
Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
-30 to 70°C operating temperature to resist harsh environments
Wall mounting and DIN-rail allow for optimal device placement

1. Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.

Share:

Share

Pairs well with

* Warranty Details

Downloads Datasheets M2M Solution Guide

Highspeed 4G Internet

Blazing fast 4G/3G LTE download speeds of up to 150 Mbps1

Wired and wireless connectivity for broad compatibility

Offers maximum flexibility for your Machine-to-Machine (M2M) applications with wireless and wired connectivity.

Dual-SIM slot for always-on Internet

Configurable dual-SIM fallback provides connectivity that you can count on, even if one operator's network goes down

Advanced VPN

Integrated VPN client and server with support for IPSec, PPTP, L2TPv2, GRE, and OpenVPN tunneling

Easy management

Local and remote access through web/Telnet/SSH and SNMP support. TR-069 and D-ECS management platform available for projects.

Rapid deployment anywhere

The wall-mount for easy installation anywhere, small form factor, SNMP management support, Zinc-plated steel case, wide operating temperature and humidity tolerance

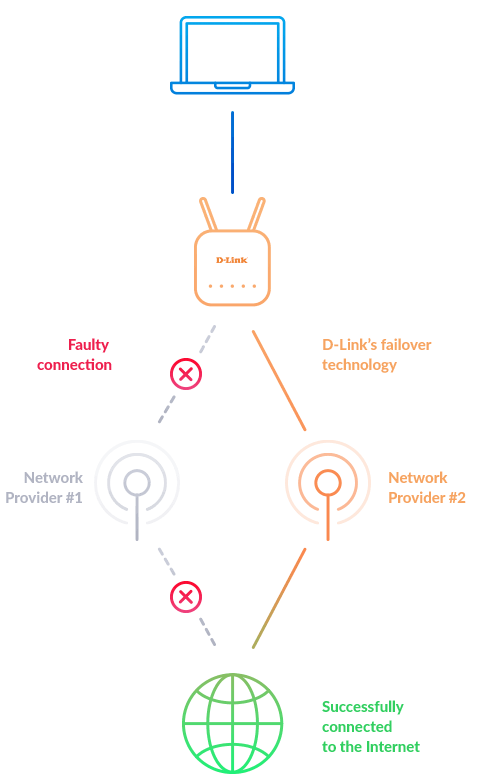

Your Internet will never fail you again

Disruptions can happen at any time, but we’ve developed D-Link’s Failover technology to eliminate them altogether.

If one of your network providers are having connectivity issues, the DWM-313 will automatically switch your connection over to backup 4G/3G cellular data on another network, thanks to the built-in Dual-SIM option – so your business can keep functioning, as normal.

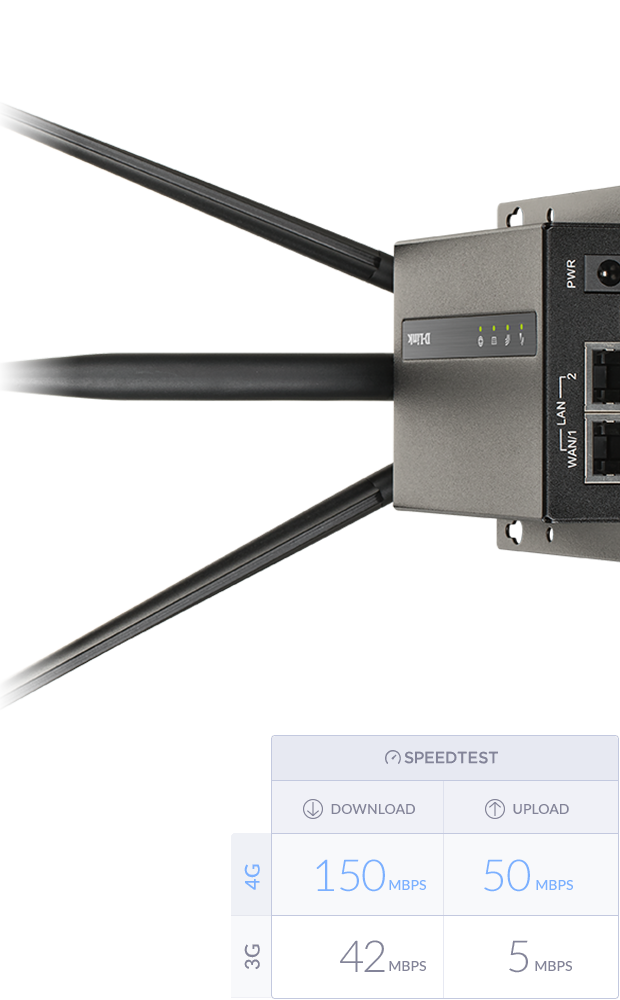

Connectivity where you need it most

Easily connect to your high-speed 4G/3G LTE mobile connection and enjoy downlink speeds of up to 150 Mbps1 and uplink speeds up to 50 Mbps1 – facilitating fast, reliable and responsive Internet access that enables you to deploy the router in a remote location, and still access your devices from anywhere.

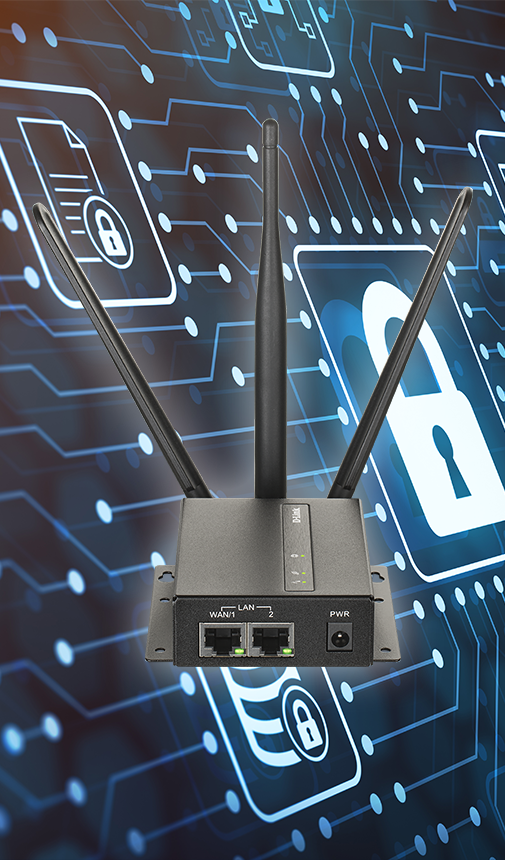

Reliable, secure and high-speed VPN

The DWM-313 can support almost any VPN policy and manage multiple configurations. It even supports IPSec, GRE and OpenVPN protocols as well as handling pass-through traffic.

Advanced VPN configuration options include multiple encryption options, key management, negotiation modes, and VPN authentication using an internal user database.

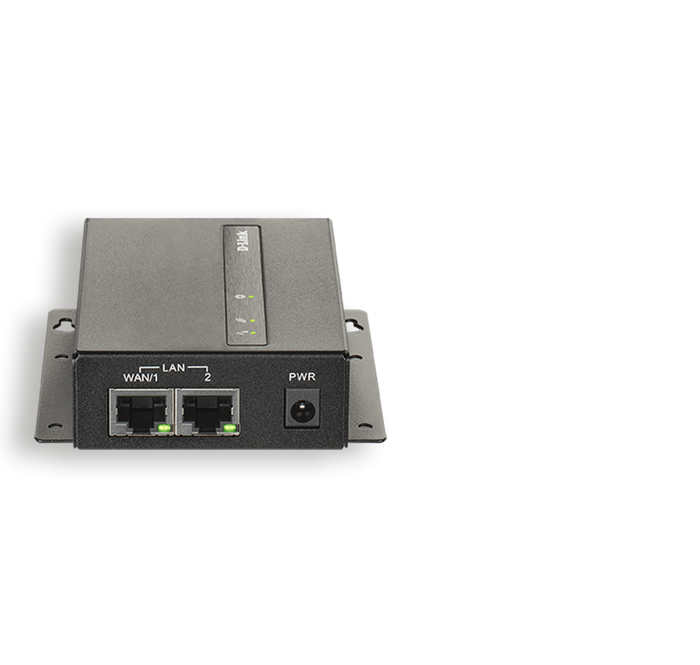

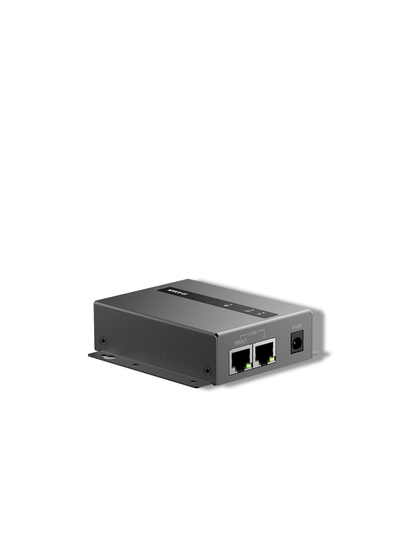

Easy installation in extreme conditions

The corrosion-resistant zinc-plated steel case and wide operating temperature and humidity tolerance make the DWM-313 an industrial-grade device, ready for the most demanding M2M environment.

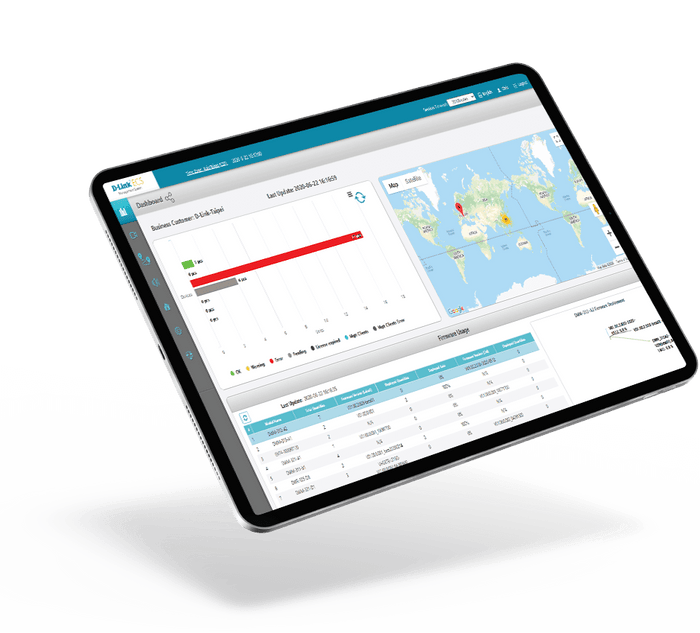

Network agility for Enterprise IoT Management

D-Link offers the latest advanced EaaS (Edge as a Service) cloud computing platform to enable flexible, secure and low latency networks for mission critical operations.

With fast, flexible deployment and having full control and visibility over your network, the D-ECS D-Link Edge Cloud Solution platform offers extensive functionality enabling device management, traffic analytics, security, cost-management and more.

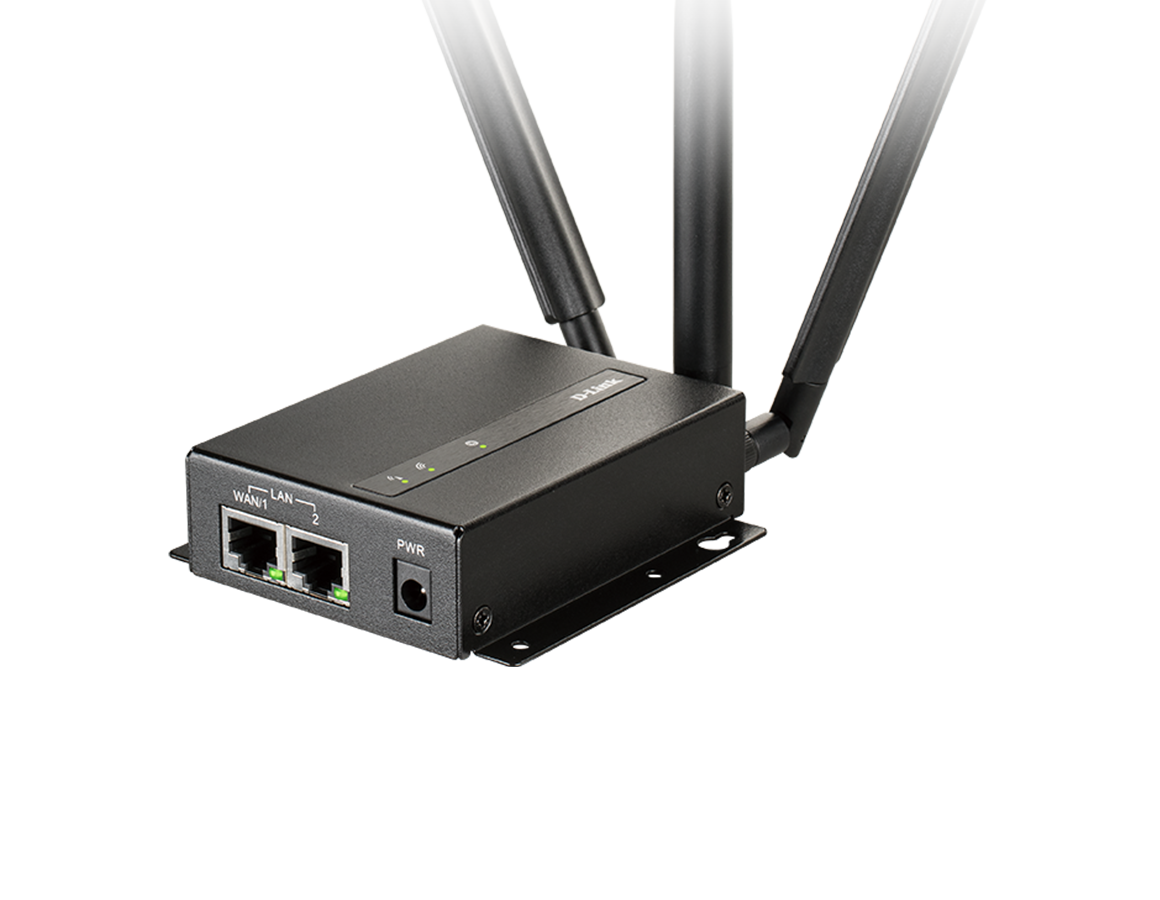

Robust, dual-SIM 4G Wi-Fi VPN Router

Easy-to-deploy, high-performance, industrial-grade 4G/3G mobile router for Machine-to-Machine applications in any environment.

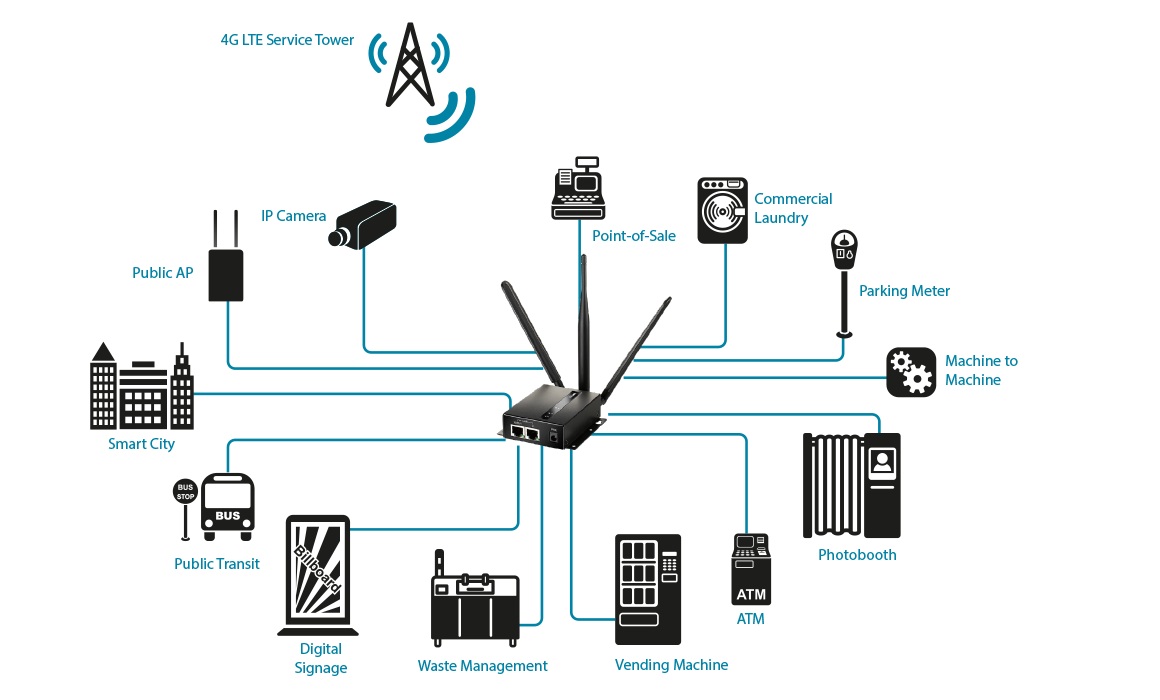

Purpose-built for M2M

Remotely monitor and manage your Machine-to-Machine (M2M) networks with the industrial-grade DWM-313. Features such as redundant mobile Internet with dual SIM slots, secure VPN connection, flexible wired and wireless LAN connectivity, ensure your M2M applications stay online, 24/7.

Tech Specifications

Hardware

Power

5V/2A adapter, Flexible input: DC 5V/2A ~ 18V/0.7A

Wireless

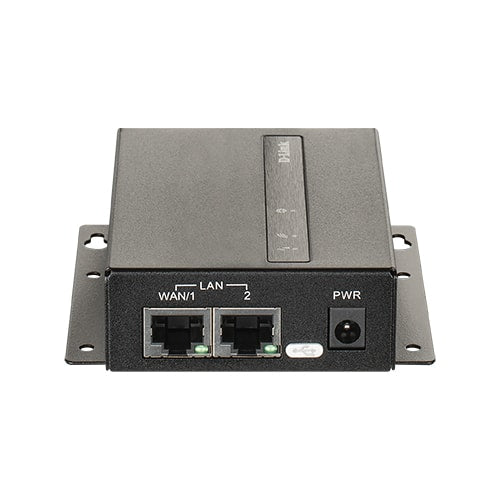

Device Interfaces

One 10/100 Ethernet WAN/LAN port
One 10/100 Ethernet LAN port
Micro SD card slot

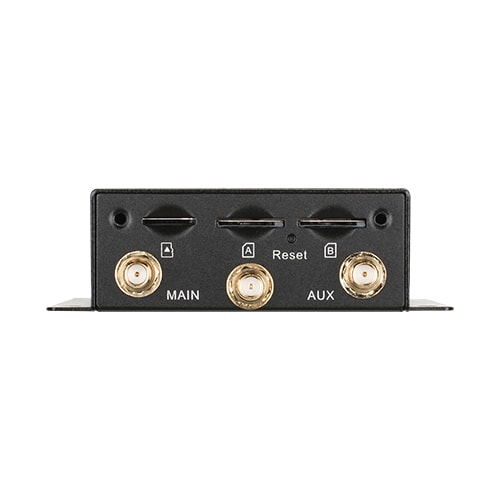

2 SIM slots (Micro-3FF)
DC input
USB port for RS-232 (TxD, RxD)

Standards IEEE

802.3i, • IEEE 802.3u, • 802.11n/g/b

Data Throughput

LTE FDD: 150 Mbps (DL) / 50 Mbps (UL)
LTE TDD: 130 Mbps (DL) / 30 Mbps (UL)
DC-HSDPA/HSUPA: 42 Mbps (DL) / 5.76 Mbps (UL)
WCDMA: 384 Kbps (DL ) / 384 Kbps (UL)
EDGE: 296 Kbps (DL) /236.8 Kbps (UL)
GPRS: 107 Kbps (DL) / 85.6 Kbps (UL)

General

Advanced Features

SNMP Support
Web-based UI
TR-069 CPE WAN Management Protocol
DECS
Remote Management of UPS
Remote Management of Devices

D-Link will provide security updates for D-Link DWM-313 until end of May 2025, and extended support may be provided after the stated date and D-Link has the final decision on every security patch adoption and release.

Physical

Dimensions

93 x 70 x 23.6 mm (3.66 x 2.76 x 0.92 in)

Weight

210 g (7.41 oz)
