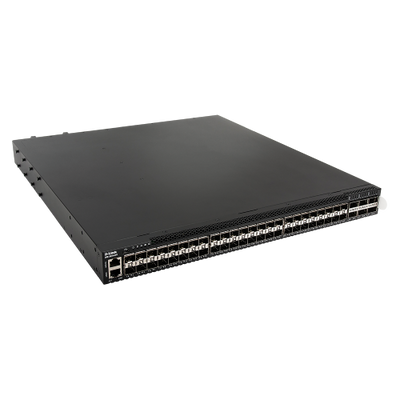

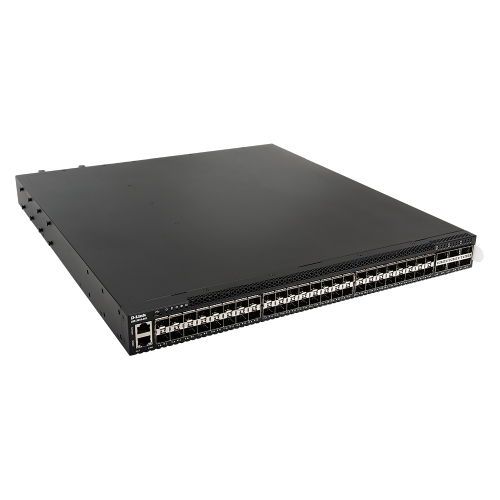

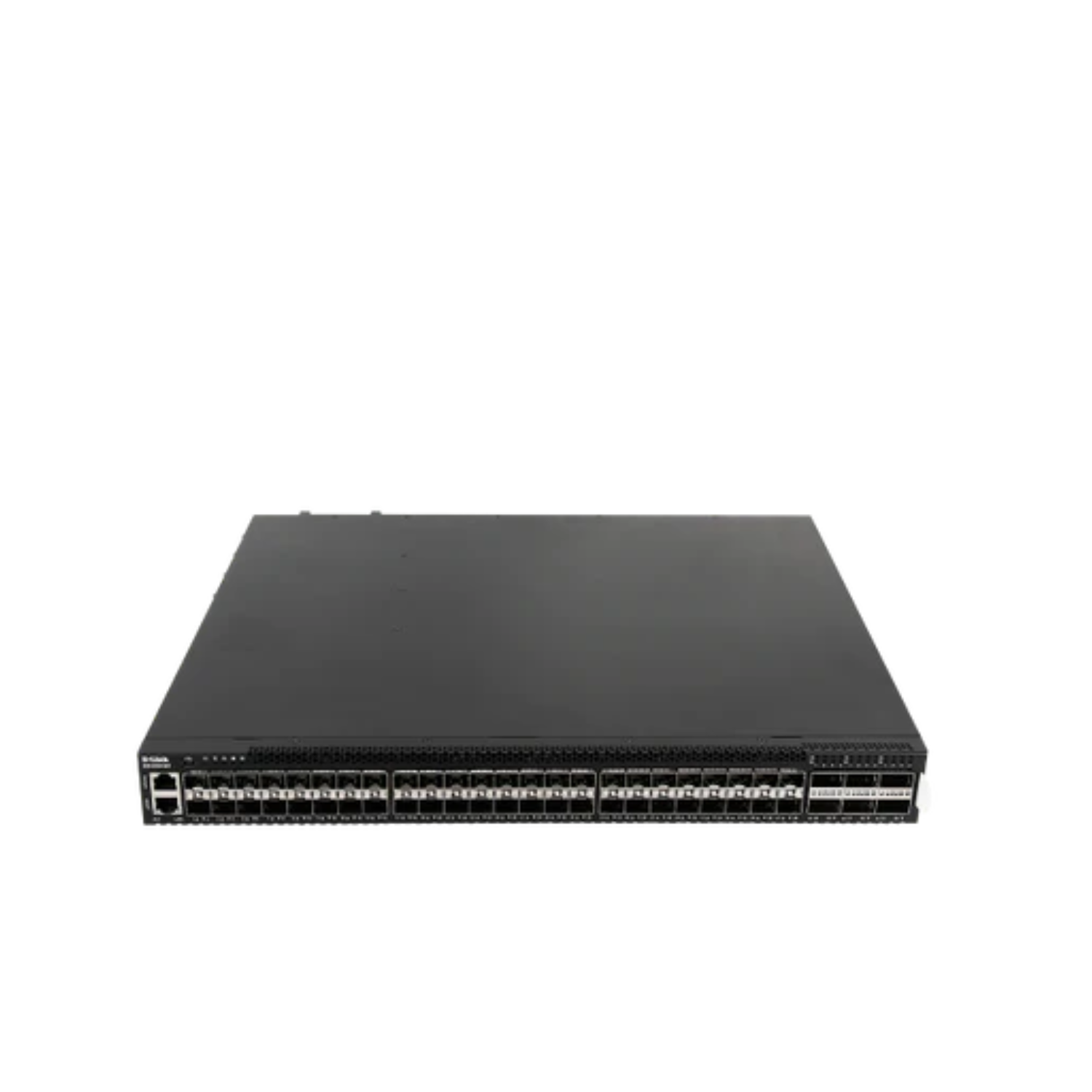

Layer 3 Stackable 10G / 100G Managed Switches
Layer 3 Stackable 10G / 100G Managed Switches
Layer 3 Stackable 10G / 100G Managed Switches
Layer 3 Stackable 10G / 100G Managed Switches

Layer 3 Stackable 10G / 100G Managed Switches

SKU

• High port density: 48 x 10 GbE SFP+, 6 x 100G QSFP+ ports
• Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
• OpenFlow 1.3 compliance for SDN-enabled network compatibility

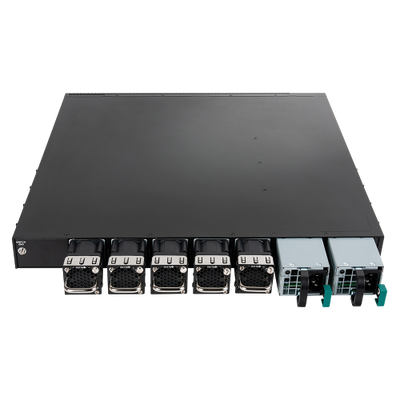

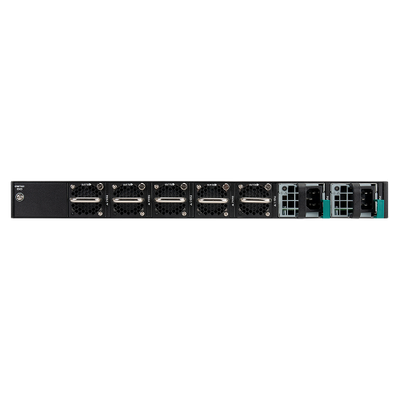

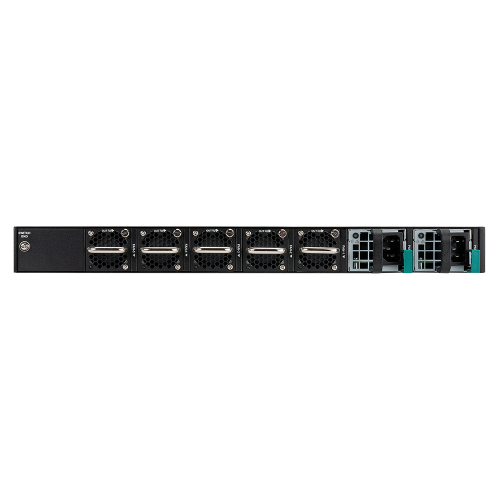

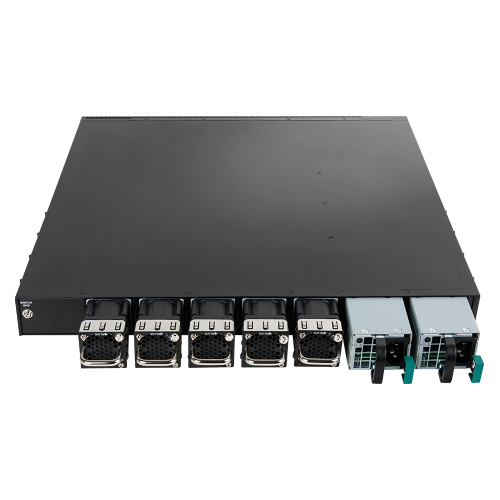

• Modular PSU (1+1) and fan (N+1) with load sharing capabilities
• Switch locator LED and ID tag for maintenance convenience
• Upgradable license for full L3 and MPLS applications

Pairs well with

* Warranty Details
Downloads Datasheets M2M Solution Guide

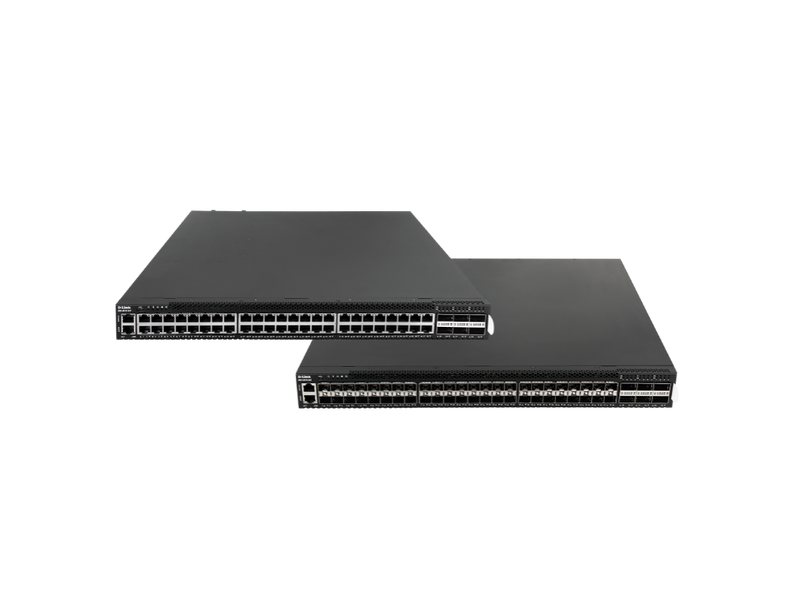

OpenFlow Switching that Stacks Above the Competition

The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.

OpenFlow Switching that Stacks Above the Competition

Tech Specifications

Hardware

Interfaces
  • 48 x 1/10GbE SFP/SFP+ ports
  • 6 x 40/100GbE QSFP+/QSFP28 ports
Console Port
  • 1 x RJ-45 console port
Switching Capacity
  • 2.16 Tbps
Maximum Forwarding Rate
  • 1607.04 Mpps
Packet Buffer Size
  • 32 MB
Max Power Consumption
  • 320.8 W
Standby Power Consumption
  • 120.6 W
Maximum Heat Dissipation
  • 1083 BTU/hr
Acoustic
  • Max: 79.4 dB
  • Min: 65.3 dB
FAN
  • Fan x 5
MTBF
  • 94,262 hours
Power Input
  • 100 to 240 V AC
  • 50/60 Hz

Physical
Dimensions
  • 441.0 x 487.44 x 43.5 mm (17.36 x 19.19 x 1.71 in)
Weight
  • 9.80 kg (21.61 lbs)
Temperature
  • Operating: 0 to 45 ºC (32 to 113 ºF)
  • Storage: -40 to 70 °C (-40 to 158 °F)
Humidity
  • Operating: 0% - 95% RH
  • Storage: 0% - 95% RH
